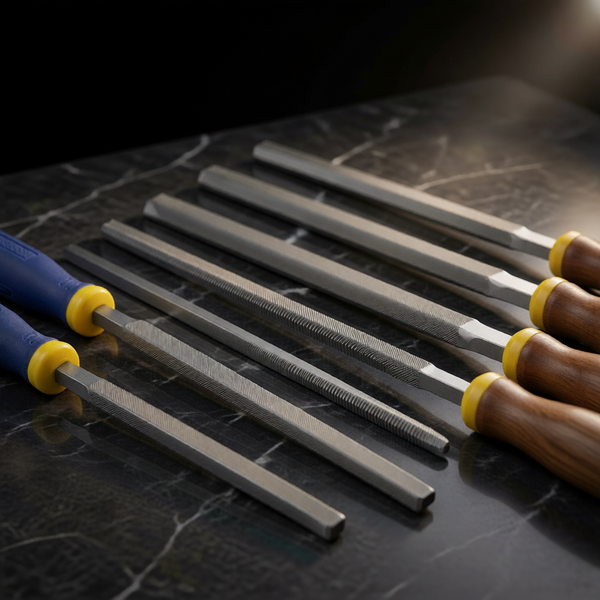

Best Files for Precision Work: Complete Guide to Needle, Swiss-Pattern & Die Sinker Files

What Are the Best Files for Precision Work? A Complete Guide to Needle, Swiss-Pattern & Die Sinker Files

In precision engineering—whether in tool and die making, mold manufacturing, aerospace component finishing, or jewelry fabrication—the difference between a perfect fit and a rejected part often comes down to millimeters, or even microns. When powered machinery reaches its limit, the hand file steps in. But not just any file.

Precision work demands files engineered specifically for controlled, predictable material removal at microscopic levels. Unlike general-purpose workshop files designed for rapid stock removal, precision files feature finer tooth geometry, tighter dimensional tolerances, higher quality steel, and specialized shapes that give skilled artisans and machinists the control they need.

For tool distributors, industrial buyers, and procurement professionals serving precision manufacturing industries, understanding the hierarchy of precision files—from Swiss-pattern needle files to die sinker files and precision rifflers—is essential for making informed stocking and purchasing decisions. This guide provides a comprehensive examination of every category, specification, and selection criterion.

📑 Table of Contents

What Makes a File "Precision-Grade"?
The Five Categories of Precision Files
Swiss-Pattern Needle Files: The Gold Standard
Die Sinker Files: For Mold & Tool Work
Precision Rifflers & Escapement Files
Understanding Precision Cut Grades (#00 to #6)
Shape Selection for Precision Applications
Steel & Hardness: What Precision Files Are Made Of
Application Guide: Which File for Which Job
Recommended Precision File Sets
Precision Filing Techniques & Best Practices
Care & Maintenance of Precision Files
Frequently Asked Questions (FAQ)
Pachatool Precision File Range
Conclusion

What Makes a File "Precision-Grade"?

Summary: Precision-grade files differ from standard files in seven key areas: steel quality, heat treatment consistency, tooth geometry precision, dimensional accuracy, surface finish of the blank, handle ergonomics, and quality certification.

Not every file labeled "precision" or "needle file" truly qualifies for precision work. Here are the defining characteristics of genuine precision-grade files:

Characteristic	Standard File	Precision-Grade File
Steel grade	Low-carbon or medium-carbon (1045, 1050)	High-carbon chromium tool steel (T10, T12, SK5)
Hardness (HRC)	45–55 HRC (often inconsistent)	62–64 HRC (uniform within ±1.5 HRC)
Tooth pitch tolerance	±0.10 mm or worse	±0.02 mm (laser-inspected)
Blank straightness	±0.20 mm over 100 mm	±0.05 mm over 100 mm
Surface finish of blank	Ground, may have grinding marks	Polished or precision-ground, defect-free
Tooth angle consistency	Variable (±5°)	Controlled (±1°)
Handle	Basic PVC or plastic	Ergonomic hardwood or bi-material, precision-fit
Dimensional tolerance (cross-section)	±0.10 mm	±0.03 mm or better
Certification	Often none	DIN 7261, ISO 2341, or NF R81-001 compliant

🔧 Key Takeaway for Buyers: The price difference between a standard file and a precision-grade file is typically 2–5×, but the performance difference in precision applications can be 10–20×. For tool and die work, mold finishing, or any operation tolerancing below ±0.1 mm, always specify precision-grade files with documented quality characteristics.

The Five Categories of Precision Files

Summary: Precision files fall into five distinct categories based on size, shape, cut geometry, and intended application: Swiss-pattern needle files, die sinker files, precision rifflers, escapement files, and watchmaker's files.

Category	Typical Length	Cut Range	Primary Users	Key Feature
Swiss-Pattern Needle Files	100–180 mm (4–7")	#00 (coarsest) to #6 (finest)	Tool & die makers, mold makers, machinists	Precision-cut teeth; uniform pitch; wide shape range
Die Sinker Files	100–200 mm (4–8")	#0 to #4 (parallel Swiss)	Die sinkers, mold makers, toolmakers	Safe edge (uncut) on one or both sides
Precision Rifflers	120–200 mm overall	#2 to #6	Mold polishers, engravers, sculptors	Curved, double-ended; for 3D contours
Escapement Files	70–120 mm (3–5")	#4 to #8 (ultra-fine)	Watchmakers, instrument makers	Extremely fine cut; very small cross-section
Watchmaker's Files	50–100 mm (2–4")	#4 to #8	Watchmakers, jewellers, optical technicians	Minute size; precision-ground; often single-cut only

Swiss-Pattern Needle Files: The Gold Standard for Precision

Summary: Swiss-pattern needle files are the most widely used precision files in industrial tool rooms. They feature a standardized numbering system (#00 to #6) for cut coarseness, are made from high-carbon steel, and are available in over 30 cross-sectional shapes.

What Makes Them "Swiss-Pattern"?

Despite the name, "Swiss-pattern" refers to a specific standard of tooth geometry and quality, not necessarily country of origin. True Swiss-pattern files are characterized by:

Overcut teeth — the primary tooth cut is made at a precise angle (typically 60–65°)
Upset teeth — a secondary light cut (spacing) that breaks up the primary cut into shorter, more precise segments
More teeth per inch — significantly more teeth than American-pattern files of equivalent cut grade
Finer, more uniform pitch — resulting in smoother cutting action and better surface finish

Swiss-Pattern Cut Numbering System

Cut Number	Name	Teeth Per Inch (approx.)	Material Removal	Surface Finish	Typical Application
#00	Coarse	~20	Highest (for precision files)	Rough	Initial shaping, rapid stock removal on soft materials
#0	Bastard	~25	High	Rough to medium	General shaping on tool steel
#1	Second	~30	Medium-high	Medium	General deburring, light shaping
#2	Fine	~36	Medium	Good	Standard precision filing, most common cut
#3	Extra Fine	~42	Medium-low	Very good	Fine finishing, near-net shape refinement
#4	Smooth	~50	Low	Excellent	Final finishing, surface preparation for polishing
#5	Extra Smooth	~58	Very low	Superior	Precision finishing, mold surface work
#6	Dead Smooth	~65+	Minimal	Highest	Final polishing prep, precision fitting

💡 Industry Best Practice: For most precision tool and die work, a set of Swiss-pattern files in cuts #2, #4, and #6 will cover 90% of requirements. Use #2 for initial shaping and deburring, #4 for finishing, and #6 for final dead-smooth work before polishing compound.

Die Sinker Files: Purpose-Built for Mold & Tool Work

Summary: Die sinker files are precision files with at least one "safe" (uncut) edge, designed to protect adjacent walls and surfaces when filing into corners, slots, and cavities. They are indispensable in mold making and die sinking operations.

What Is a Safe Edge?

A safe edge is a lengthwise edge of the file that has no teeth cut into it. This allows the user to file into a corner or against a shoulder without cutting or damaging the adjacent surface. Die sinker files typically have:

Single safe edge: One edge smooth, one edge toothed — for general corner work
Double safe edge: Both edges smooth — for confined slots and channels
Safe face: One broad face uncut — for filing against flat reference surfaces

Common Die Sinker File Profiles

Profile	Safe Edge Configuration	Best Application
Pillar (Flat, Parallel)	Single safe edge or double safe edge	Slots, keyways, step corners
Square	Single or double safe edge	90° internal corners, square slots
Three-Square (Triangular)	One safe edge (usually)	60° dovetail slots, acute angles
Half-Round	Safe edge on flat side or both	Radius-to-flat transitions, cavity work
Knife	Safe on back edge	Narrow grooves, slot cleaning

Parallel vs. Tapered Die Sinker Files

Type	Shape	Best For
Parallel (Blunt)	Uniform width for full length	Flat surfaces, wide slots, general die work
Tapered (Pointed)	Width narrows toward tip	Tight corners, cavity detail, confined spaces

Precision Rifflers & Escapement Files

Summary: Rifflers are curved, double-ended precision files designed for complex 3D surfaces. Escapement files are the finest precision files available, used in horology and micro-mechanics where tolerances below 0.01 mm are required.

Precision Rifflers

Rifflers are uniquely shaped precision files with a central handle and cutting surfaces on both ends, often curved to access complex geometries. They are essential in:

Mold polishing — blending curved cavity surfaces
Engraving — fine detail work in metal
Sculpture and restoration — precise material removal on contoured surfaces
Aerospace blade work — turbine blade airfoil finishing

Rifflers come in dozens of tip shapes including round, half-round, square, three-square, knife-edge, leaf, and spade. Most are double-ended with different shapes on each end for maximum versatility.

Escapement & Watchmaker's Files

These are the finest precision files manufactured, used in applications where material removal is measured in microns:

Feature	Escapement File	Watchmaker's File
Length	70–100 mm (3–4")	50–80 mm (2–3")
Width	1.5–3.0 mm	0.8–2.0 mm
Thickness	0.5–1.5 mm	0.3–1.0 mm
Cut grades available	#2 to #8	#4 to #8 (ultra-fine)
Material	High-carbon steel, HRC 62–64	High-carbon steel, HRC 62–64
Typical application tolerance	±0.01–0.02 mm	±0.005–0.01 mm

Understanding Precision Cut Grades: The #00 to #6 System

Summary: The Swiss numbering system for precision file cuts is the international standard. Lower numbers (#00, #0) are coarser; higher numbers (#4, #5, #6) are finer. Choosing the right cut grade is the single most important factor in precision filing success.

How the Cut Number System Works

The Swiss cut numbering system (#00 through #6, and beyond to #8 in some categories) indicates the fineness of the tooth pitch. Unlike the American system (bastard, second, smooth, dead smooth) which has only 4 grades, the Swiss system offers 7–9 distinct grades, giving the user much finer control over material removal rate and surface finish.

Selecting the Right Cut Grade

Workpiece Condition	Recommended Start Cut	Intermediate Cut	Final Cut
Rough casting or weld, heavy stock removal	#00 or #0	#2	#4
Machined surface, 0.2–0.5 mm to remove	#1 or #2	#3 or #4	#6
Near-net shape, 0.05–0.2 mm to remove	#2 or #3	#4 or #5	#6
Fitting tolerance ±0.02 mm	#4	#5	#6
Mold surface, final prep for polishing	#5	—	#6
Escapement/watch movement work	#6	—	#8 (if available)

🔧 Rule of Thumb: Always start with the coarsest cut that will achieve your target dimension, then progress through 2–3 intermediate cuts to reach final surface finish. Skipping cut grades (e.g., going directly from #2 to #6) takes much longer and can produce uneven surfaces. Each successive cut should remove only the scratches from the previous cut.

Shape Selection for Precision Applications

Summary: The cross-sectional shape of a precision file determines what geometries it can access. A well-equipped precision file set should include at least 8–12 different shapes to handle common tool room requirements.

Essential Precision File Shapes

Shape	Cross-Section	Primary Application	Essential For
Flat (Rectangular)	■	Flat surfaces, external edges	Every set
Half-Round	◠	Concave curves, flat + radius	Every set
Round (Rat-Tail)	●	Hole enlarging, internal radii	Every set
Square	◼	Slots, keyways, 90° corners	Every set
Three-Square (Triangular)	▲	60° angles, dovetails, saw sharpening	Every set
Knife (Edged)	🔺 (thin wedge)	Narrow slots, fine grooves, cleaning threads	Highly recommended
Oval	◯ (elongated)	Elliptical holes, contoured surfaces	Highly recommended
Barrette (Crossing)	⏥ (trapezoidal)	Dovetail slots, angled surfaces	Specialized
Marking (Scribing)	🔻 (pointed tip)	Layout lines, starting grooves	Optional
Equaling	▭ (thin flat)	Parallel surfaces, thin slots	Optional

Steel & Hardness: What Precision Files Are Made Of

Summary: Precision files must be made from high-carbon chromium tool steel heat-treated to HRC 62–64. Lower hardness results in rapid dulling; higher hardness causes brittleness and tooth chipping.

Optimal Steel Grades for Precision Files

Steel Grade	Standard	Carbon %	Hardness (HRC)	Grain Size	Rating
T10	GB (China)	1.0%	61–64	Fine	★★★★★
T12	GB (China)	1.2%	62–65	Fine	★★★★★
SK5 (SK85)	JIS (Japan)	0.85%	58–62	Medium	★★★★
W1 (Water Hardening)	AISI (USA)	0.9–1.1%	60–64	Medium	★★★★
1045/1050	AISI (USA)	0.45–0.50%	45–52	Coarse	★★ (not for precision)

💡 Precision File Hardness Test: A simple field test: gently tap the file against a metal surface. A properly hardened precision file produces a clear, high-pitched "ring." A soft or poorly hardened file produces a dull "thud." This is an immediate quality indicator that experienced tool buyers use for quick verification.

Application Guide: Which Precision File for Which Job

By Industry

Industry	Primary File Types	Cut Grades	Most Common Shapes
Tool & Die Making	Die sinker, Swiss-pattern	#0 to #4	Flat, square, half-round, pillar, knife
Injection Mold Making	Swiss-pattern, rifflers	#2 to #6	Half-round, round, oval, knife
Aerospace Finishing	Swiss-pattern, needle files	#2 to #6	Flat, half-round, round, three-square
Jewelry Manufacturing	Watchmaker's, escapement	#4 to #8	Flat, half-round, round, knife, marking
Watchmaking / Horology	Escapement, watchmaker's	#6 to #8	Flat, knife, square, three-square
Dental / Medical Device	Rifflers, needle files	#4 to #6	Half-round, round, knife, spade
Musical Instrument Repair	Needle files, escapement	#2 to #6	Flat, half-round, round, knife

By Task

Task	Recommended File	Cut Grade	Technique Notes
Deburring machined edges on tool steel	Swiss-pattern flat file	#2 or #3	Light pressure, use safe edge against shoulders
Opening a die cavity to dimension	Die sinker pillar file	#0 or #1	Check dimension frequently; safe edge protects cavity wall
Finishing a mold surface before polishing	Swiss-pattern half-round	#5 or #6	Cross-file in multiple directions to eliminate directional scratches
Fitting a punch into a die opening	Swiss-pattern flat or square	#4	File the punch, not the die; use marking compound for fit check
Cleaning a narrow slot (1–2 mm)	Knife or equaling file	#2 or #3	File in one direction; avoid rocking
Refining an engraved detail	Riffler or escapement file	#4 to #6	Use tip of file only; support hand against workpiece
Adjusting watch pallet stones	Escapement file	#7 or #8	Minimal pressure; magnifying aid required

Recommended Precision File Sets

Summary: A well-curated precision file set is a strategic investment. We recommend three tiers of sets depending on application depth: Essential (6-piece), Professional (12-piece), and Master (20+ piece).

🔹 Essential Set (6-Piece)

Best for: General maintenance, light precision work, occasional use

Includes:

Flat #2
Half-Round #2
Round #2
Square #2
Three-Square #2
Flat #4

Estimated cost: $12–$25

Entry level

🔸 Professional Set (12-Piece)

Best for: Tool rooms, mold shops, full-time machinists

Includes:

Flat #0, #2, #4
Half-Round #2, #4
Round #2, #4
Square #2
Three-Square #2
Knife #2
Pillar (safe edge) #2
Oval #4

Estimated cost: $35–$65

Best value

🔹 Master Set (20+ Piece)

Best for: Dedicated die/mold shops, aerospace, precision engineering firms

Includes: All professional set shapes + additional cuts (#6 in flat, half-round, round) + rifflers (6–8 shapes) + escapement files (3–4 shapes) + needle file assortment + die sinker files (square and pillar with safe edges)

Estimated cost: $85–$150

Comprehensive

Precision Filing Techniques & Best Practices

Summary: Precision filing is a skill that combines proper tool selection, correct technique, and disciplined measurement. The following techniques separate professional results from amateur work.

1. The Three-Stroke Rule

In precision work, never make more than three strokes without measuring. File → measure → file → measure. One extra stroke with a #2 cut file can remove 0.02–0.05 mm—enough to scrap a precision fit.

2. Proper Grip & Pressure

Hold the file handle in your dominant hand with the thumb on top. Guide the tip with your non-dominant hand using light pressure. Use only the weight of the file for cuts #4 to #6—applying pressure with fine cuts causes chattering and uneven surfaces.

3. Directional Technique

Straight filing: Push the file in a straight line parallel to the workpiece surface. Used for flat surfaces and external edges.
Draw filing: Hold the file perpendicular to the work and draw it sideways. Produces the finest surface finish on flat surfaces.
Cross filing: File at 45° to the workpiece edge in alternating directions. Used for rapid stock removal with good flatness control.

4. Workpiece Preparation

Always secure the workpiece firmly in a vice with protective jaws (copper or lead) to prevent distortion
Use marking blue (Prussian blue) for fit-checking — file only the blue areas
Deburr the workpiece edges before precision filing to prevent false readings

💡 Professional Technique — "The 45° Check": When filing a flat surface, periodically check flatness by holding a precision straight edge against the work at 45° to the filing direction. This reveals low spots and high spots that parallel checks may miss. A .002 mm (0.00008") feeler gauge should not pass under the straight edge on a properly surfaced precision fit.

Care & Maintenance of Precision Files

Summary: Precision files are high-value tools that require proper cleaning, storage, and handling. A well-maintained precision file can last 5–10 years in professional use. A neglected one can be ruined in a single session.

Daily Care

Clean after every use: Use a file card (wire brush) to remove swarf from between teeth. Brush parallel to the teeth, not across them.
Remove pinning immediately: If material clogs (pins) between teeth, use a file card or a piece of brass shim to dislodge it. Never tap the file against metal to dislodge chips—this damages teeth.
Chalk treatment: Rub chalk (calcium carbonate) into the file teeth before use on soft metals. This reduces pinning by filling the space between teeth.

Storage

Never store files loose in a drawer — contact between files dulls teeth and causes cross-contamination of materials
Use individual file sleeves or racks with separated compartments
Control humidity — store in environment <60% RH to prevent rust
VCI (Vapor Corrosion Inhibitor) — use VCI-treated pouches for long-term storage

What NOT to Do With Precision Files

✘ Never use a precision file on hardened steel (HRC 55+) — it will destroy the teeth
✘ Never use a file without a handle — risk of injury and loss of control
✘ Never use a file as a pry bar, punch, or lever
✘ Never oil precision files — oil causes filings to clog the teeth
✘ Never use a file on dirty, greasy, or painted surfaces

Frequently Asked Questions (FAQ)

1. What is the difference between Swiss-pattern and American-pattern files?

Swiss-pattern files have finer, more closely spaced teeth with a higher tooth count per inch. They are designed specifically for precision work on metal. American-pattern files have coarser teeth with more aggressive cutting action, better suited for general workshop use and softer materials. Swiss-pattern files are the standard for tool and die making.

2. Can needle files be sharpened?

No. Unlike carbide burrs, precision steel files cannot be effectively resharpened. The tooth geometry is too fine and the steel hardness makes re-grinding impractical. Once a precision file is dull, it must be replaced. Proper care can extend life by 2–3×.

3. What cut number should I use for general tool room work?

Cut #2 (fine) is the most versatile for general tool room precision work. It provides a good balance of material removal rate and surface finish. For most applications, start with #2 and progress to #4 or #6 for finishing.

4. How do I choose between a tapered and parallel precision file?

Use tapered (pointed) files for confined spaces, cavities, and tight corners where access is limited. Use parallel (blunt) files for open flat surfaces, wide slots, and general work where uniform width is needed. Most precision file sets include both types.

5. What is a "safe edge" on a precision file and when do I need it?

A safe edge is an edge of the file that has no teeth, allowing you to file into a corner or against a reference surface without cutting into the adjacent wall. You need safe-edge files whenever you are filing slots, keyways, step corners, or any feature where one surface must remain undisturbed.

6. What size precision file set do I need for a mold making shop?

For a professional mold shop, a 12-piece Swiss-pattern set (Professional set above) plus 6–8 rifflers is the minimum. For comprehensive coverage, the 20+ piece Master set is recommended. Include both parallel and tapered shapes in cuts #2, #4, and #6.

7. Can I use precision files on aluminum or soft metals?

Yes, but with caution. Soft metals like aluminum, brass, and copper tend to clog (pin) precision files because the fine teeth have limited chip clearance. Use chalk as a lubricant, clean the file frequently with a file card, and consider using a coarser cut (#0 or #1) to reduce clogging.

8. How do I know when a precision file is worn out?

A precision file is worn out when: (a) it requires significantly more pressure to remove material, (b) it produces a burnished or shiny surface instead of a matte cut surface, (c) the file slides or chatters instead of cutting cleanly, or (d) teeth are visibly chipped or worn flat. Replace immediately—using a worn file damages workpiece accuracy.

9. What is the best way to clean precision needle files?

Use a file card (wire brush) with fine steel wires. Brush parallel to the file teeth (not across) to avoid bending or breaking them. For stubborn pinning, use a brass or copper pick to gently dislodge particles. Never use a steel pick—it will damage the hardened teeth.

10. Are expensive precision files worth the extra cost?

For precision work where tolerances matter: absolutely. A high-quality precision file from a reputable manufacturer (using T10/T12 steel, proper heat treatment, and CNC-ground teeth) will outlast a cheap alternative by 5–10× and produce consistently better results. The cost per hour of use is actually lower for premium files in professional environments. For occasional hobby use, mid-range files may be sufficient.

Pachatool Precision File Range

Summary: Pachatool manufactures a comprehensive range of precision files including Swiss-pattern needle files, die sinker files, and rifflers, using T10 high-carbon chromium steel with precision heat treatment and CNC-ground tooth geometry.

Our Precision File Specifications

Parameter	Pachatool Precision File
Steel grade	T10 high-carbon chromium tool steel (1.0% C, Cr alloyed)
Hardness	62–64 HRC (vacuum heat-treated, triple tempered)
Tooth cutting	CNC hobbing with laser-inline pitch inspection
Tooth pitch tolerance	±0.02 mm
Blank straightness	≤0.03 mm over 100 mm
Cut grades available	#00, #0, #1, #2, #3, #4, #5, #6 (Swiss numbering)
Shapes available	25+ standard shapes (flat, half-round, round, square, three-square, knife, oval, barrette, pillar, marking, equaling)
File lengths	100 mm (4"), 120 mm (5"), 140 mm (6"), 160 mm (7"), 180 mm (8")
Handle options	Hardwood (beech), bi-material PP/TPR, or handleless (for custom fitting)
Compliance	DIN 7261, ISO 2341, NF R81-001

Popular Pachatool Precision File Sets

Set	Pieces	Shapes	Cuts	Best For
PNF-106	6	Flat, Half-Round, Round, Square, 3-Square, Flat #4	#2, #4	Entry-level precision, maintenance
PNF-112	12	Flat (×3), Half-Round (×2), Round (×2), Square, 3-Square, Knife, Pillar, Oval	#0, #2, #4	Professional tool rooms
PDS-108	8	Die sinker: Pillar (safe), Square (safe), 3-Square, Half-Round, Knife	#0, #2, #4	Die and mold making
PRF-106	6	Rifflers: assorted tip shapes (round, half-round, knife, spade, leaf)	#4, #6	Mold polishing, 3D contour work
PMF-120	20	Full range: needle files + die sinker + rifflers + escapement	#00 to #6	Master set for precision engineering

"We switched to Pachatool's PN-112 precision file set for our injection mold finishing department. The consistency of tooth geometry across the set is remarkable—every file cuts exactly as expected. Our mold surface preparation time dropped by 25% because we no longer need to compensate for inconsistent files."
— Tooling Manager, Automotive Mold Manufacturer (Germany)

Conclusion

The best files for precision work are those that match the specific demands of the application—in steel quality, tooth geometry, shape profile, cut grade, and dimensional accuracy. Swiss-pattern needle files (cuts #2 to #6) form the foundation of any precision tool kit, while die sinker files with safe edges handle mold and die work, and rifflers address complex 3D surfaces.

For industrial buyers and distributors, investing in precision files from a manufacturer that controls the entire production process—from steel selection through heat treatment to final QC—ensures consistent quality that end users can rely on for their most demanding work.

Pachatool's precision file range, manufactured from T10 high-carbon chromium steel with CNC-ground teeth and vacuum heat treatment to HRC 62–64, offers the quality that precision work demands at prices that make sense for B2B procurement. Whether you need a 6-piece starter set or a 20-piece master set with rifflers and die sinker files, Pachatool delivers consistency, performance, and value.

🔧 Equip Your Tool Room with True Precision Files

Contact Pachatool's B2B team for bulk pricing, custom set configurations, OEM branding, and technical consultation on precision filing applications.

🌐 www.pachatool.com
