How to File Metal: A Complete Beginner's Guide to Hand Filing Techniques [2026]

---

Introduction

Filing metal is one of the most fundamental skills in metalworking — and one of the most frequently done wrong. The core idea is simple: a hardened steel tool with rows of cutting teeth removes small amounts of material to shape, smooth, or deburr a metal surface. But the difference between a rough, gouged edge and a clean, square finish comes down to technique, not strength.

This guide walks through every essential hand filing technique a beginner needs, from choosing the right file to achieving a professional surface finish. Whether you are working on a DIY repair, jewelry fabrication, knife making, or automotive part fitting, the principles here apply across all applications.

What makes this guide different: instead of just listing steps, it covers the why behind each technique, provides specific pressure and angle guidance most tutorials skip, and includes a metal-type comparison table you will not find in the top-ranking articles.

---

TL;DR / Key Takeaways

• Filing removes material only on the forward push stroke — lift the file on the return to avoid dulling the teeth

• Cross filing removes material fast; draw filing produces smooth finishes — they serve different purposes

• Match the file to the metal: double-cut for steel and hard metals, single-cut for brass and finishing work, chalk-coated teeth for aluminum

• Progressive filing (bastard → second-cut → smooth → sanding) is the path to a professional surface, not one aggressive pass

• A file card brush costs under $10 and extends file life by years — clean teeth cut faster and leave fewer scratches

• The single most common beginner mistake is pressing too hard; let the file's teeth do the work

---

What You Need Before Starting

Before you touch metal, gather these essentials:

Core Tools

• A selection of hand files (at minimum: one 10- or 12-inch flat bastard-cut file, one 8-inch second-cut file, one 8-inch smooth-cut file)

• A file card brush (fine wire bristles for cleaning between teeth)

• Plain chalk or a file-chalk block (prevents aluminum and soft-metal clogging)

• A bench vise with jaw pads (soft jaw covers prevent marring finished surfaces)

• Layout dye, a permanent marker, or engineer's blue (for marking reference lines)

Safety Equipment

• Safety glasses or goggles (metal filings are sharp and unpredictable)

• Work gloves (cut-resistant rated, not loose cotton — loose gloves catch on burrs)

• A bench brush or small shop vacuum for cleanup (do not use bare hands)

Optional but Recommended

• A file handle for every file (a bare tang will injure your palm if you slip)

• 320-grit and 600-grit wet/dry sandpaper for final surface refinement after filing

• A machinist's square for checking flatness and 90-degree angles during work

---

Step 1: Choose the Right File for Your Metal and Task

File selection is where most beginners go wrong. Picking the wrong file wastes time, ruins surfaces, and wears out tools prematurely.

Understanding File Cuts and Coarseness

Files are graded by how aggressive their teeth are — this determines how much material each stroke removes:

Cut Grade	Teeth per Inch (approx.)	Material Removal per Pass (approx.)	Best Used For
Bastard (coarse)	26-30	0.005-0.010 in (0.13-0.25 mm)	Rapid material removal, rough shaping
Second-cut (medium)	36-40	0.002-0.005 in (0.05-0.13 mm)	General-purpose smoothing, edge cleanup
Smooth (fine)	50-60	<0.002 in (<0.05 mm)	Finishing passes, deburring, surface prep

These numbers come from Nicholson file specifications and represent typical removal rates on mild steel with proper technique.

File Shapes and Their Applications

File Shape	Best For
Flat (hand file)	Flat surfaces, straight edges, external corners
Half-round	Curved surfaces, concave shapes, large-radius inside corners
Round (rat-tail)	Circular holes, inside curves, deburring drilled holes
Square	Square holes, keyways, internal right angles
Triangular (three-square)	V-grooves, sharp internal corners, saw tooth sharpening
Mill file (single-cut flat)	Sharpening tools, draw filing, finish work on flat surfaces

Single-Cut vs Double-Cut: Which One When?

This distinction matters more than most tutorials explain:

• Single-cut files have one set of parallel teeth running diagonally across the face. They cut like a series of tiny chisels — ideal for finishing work, draw filing, and sharpening. Use single-cut files for brass, bronze, and any surface-finishing operation.

• Double-cut files have two intersecting sets of teeth forming a diamond pattern. They cut more aggressively and clear chips faster. Use double-cut files for rapid material removal on steel, iron, and rough shaping work.

The University of Florida's engineering lab notes that most beginners reach for double-cut files for everything — a habit that leads to rough surfaces and unnecessary rework. UF Engineering Lab

Quick selection rule: If you are removing lots of material → bastard-cut, double-cut. If you are finishing → smooth-cut, single-cut. If you are working with brass or aluminum → single-cut with chalk.

---

Step 2: Secure Your Workpiece and Prepare the File

A wobbly workpiece is the enemy of a clean filed edge. The metal must not move.

Proper Vise Setup

• Position the workpiece so the area being filed is no more than 1-2 inches (25-50 mm) above the vise jaws. Higher clamping invites vibration and chatter.

• Tighten the vise until the workpiece cannot be shifted by hand. On thinner stock, use soft jaw pads or a folded cloth to prevent jaw marks.

• For small or irregularly shaped pieces — jewelry findings, small brackets, thin sheet — a hand vise or clamp-on bench pin is more practical than a full bench vise.

• For sheet metal under 1/8 inch (3 mm) thick, sandwich it between two pieces of scrap wood in the vise to prevent bending.

File Preparation

• Attach a handle. A bare tang is a puncture hazard. Push the handle onto the tang and tap the handle end on the bench to seat it firmly — do not hammer the file itself.

• Inspect the teeth. Look for clogged metal particles (called "pins") embedded between teeth. Even a few pins will scratch the workpiece.

• Chalk the file if working with aluminum. Rub ordinary chalk or a file-chalk block across the cutting face. The chalk fills the spaces between teeth so aluminum chips cannot embed. Reapply every 20-30 strokes.

• Apply layout dye or scribe a reference line. Without a visible target, it is impossible to file to a precise dimension.

---

Step 3: Master the Basic Filing Stance and Grip

Body mechanics dictate the quality of the filed surface. A file moves in a straight line only if your arm moves in a straight line.

Stance

Stand with feet shoulder-width apart, your dominant-side foot slightly back. Position your body so the file stroke moves parallel to your torso — not across it. This biomechanical alignment gives you the longest, straightest stroke.

Right-Handed Grip

• Right hand: grip the handle as you would a pistol, with your index finger extended along the top of the handle for directional control. The thumb wraps around the front of the handle.

• Left hand: place your fingertips, not your palm, on the tip of the file. Your left hand guides direction — it does not push down.

Left-Handed Grip

• Left hand: grip the handle, index finger along the top, thumb wrapped around the front.

• Right hand: fingertips on the file tip, guiding direction only.

The article from meaningfulspaces.com correctly notes that left-handed filers should file on a diagonal from lower-right to upper-left, while right-handed users file lower-left to upper-right — this natural diagonal matches your body's preferred stroke path and produces a flatter result. Meaningful Spaces

Pressure Management

Wonkee Donkee Tools emphasizes a point that separates good filing from rough filing: keep your upper body still and move from the shoulder, not the elbow or wrist. The file stays flat because your shoulder joint moves in a more consistent arc than your wrist. Wonkee Donkee Tools

Apply firm pressure only on the forward stroke — approximately 3-5 lbs (1.4-2.3 kg) of downforce for bastard-cut filing on mild steel, less for finer cuts. On the return stroke, lift the file slightly off the surface. Dragging the teeth backward dulls them and embeds broken tooth fragments in the workpiece.

---

Step 4: Cross Filing — The Primary Material Removal Technique

Cross filing is the workhorse technique. It removes material efficiently and is what you will use for roughly 70-80% of all filing work.

How to Cross File

1. Position the file at roughly 30-45 degrees to the workpiece edge, with the file crossing the work at a diagonal.

2. Push forward with firm, even pressure — use the full length of the file. Short strokes wear one section of teeth faster, creating uneven cutting.

3. At the end of the forward stroke, lift the file and return to the starting position.

4. After 10-15 strokes, rotate the file slightly or change your approach angle. This alternating-angle technique prevents the file teeth from digging into the same grooves repeatedly — it is the single best defense against accidental bevels and rounded edges.

5. Check your progress frequently against your reference line. The Clickspring "old school tips" referenced by the University of Florida emphasize: check early and often — correcting a 0.010-inch error takes seconds; correcting a 0.050-inch error takes minutes.

Common Cross Filing Mistakes

• Pressing too hard. The teeth cut most efficiently at light-to-moderate pressure. Over-pressing breaks teeth and gouges the surface. If you see deep, wandering scratch marks, you are pressing too hard.

• Rocking the file. Beginners tend to pivot at the wrist, rounding the edges of the workpiece. Keep the file flat by watching the gap between the file body and the reference surface.

• Filing both directions. The file cuts on the push stroke only. Dragging it back dulls teeth and embeds broken fragments. This one habit change alone will improve your results.

• Short, choppy strokes. Use the file's full length — a 10-inch file should travel 8-9 inches per stroke. Short strokes waste cutting surface and produce uneven material removal.

---

Step 5: Draw Filing — Achieving a Smooth Surface Finish

Draw filing is the finishing technique. It produces surfaces smooth enough that 320-grit sandpaper can take over. Unlike cross filing, which removes material quickly, draw filing is about control and surface quality.

When to Switch to Draw Filing

Switch to draw filing when:

• The workpiece is within 0.005-0.010 inches of the final dimension

• Visible tool marks from cross filing need to be removed

• You need a flat, square edge for fitting parts together

• Surface finish matters — before painting, plating, or precision assembly

Technique Specifics

1. Switch to a single-cut mill file (flat, fine teeth). Double-cut files are not suitable for draw filing — their short, intersecting teeth dig in and leave tracks. Wonkee Donkee Tools explains why: single-cut teeth act like a continuous row of tiny plane blades, shearing material cleanly; double-cut teeth are too short and dig individual divots. Wonkee Donkee Tools

2. Hold the file perpendicular to the workpiece — 90 degrees, not the 30-45 degrees of cross filing. Grip the handle in one hand and the tip in the other, as if holding a sanding block.

3. Push or pull the file along the length of the workpiece with light, consistent pressure. Draw filing can be done in either direction because the pressure is so light — but many experienced metalworkers prefer pulling toward themselves for better control on finish passes.

4. Use overlapping strokes — each pass should overlap the previous one by about 50%. This blends the cut lines together.

5. After draw filing, transition to 320-grit wet/dry sandpaper wrapped around a flat block (for flat surfaces) or 600-grit for curved surfaces. A properly draw-filed surface can achieve a finish approaching 32 microinches Ra (0.8 micrometers) — smooth to the touch and ready for final polishing.

---

Cross Filing vs Draw Filing: What's the Difference?

Cross filing and draw filing solve different problems. You need both techniques to go from rough stock to finished part.

Cross filing is a diagonal push stroke at 30-45 degrees, using the file's full length, with firm pressure on the forward stroke only. It removes material fast and is used for rough shaping, edge cleanup, and bulk material removal. Use it when you have more than 0.010 inches to remove.

Draw filing holds the file perpendicular (90 degrees) to the workpiece, gripped at both ends like a sanding block, with light pressure pulling or pushing along the work. It produces a smooth, flat surface and is used only for finishing — never for heavy removal. Use it when you are within 0.005-0.010 inches of your target dimension.

The mistake beginners make is trying to finish with cross filing alone. Cross filing leaves diagonal tool marks that draw filing is designed to remove. Think of them as roughing vs finishing passes in machining — both are necessary, neither replaces the other.

---

Step 6: Progressive Filing — From Coarse Cut to Polished Surface

A professional finish comes from a disciplined progression, not from one aggressive file.

The Progression

Stage	Tool	Goal	Visual Cue
1 — Rough Shaping	Bastard-cut, double-cut flat file	Remove bulk material, establish basic shape	Reference line is 0.020-0.030 in away
2 — Intermediate Smoothing	Second-cut file	Remove bastard file marks, bring closer to line	Reference line is 0.005-0.010 in away
3 — Finish Filing	Smooth-cut, single-cut mill file (draw filing)	Remove second-cut marks, flatten surface	Surface is smooth to fingernail test
4 — Abrasive Refinement	320-grit sandpaper on flat block	Remove draw filing micro-lines	Uniform matte finish, no visible scratches
5 — Final Polish (optional)	600-grit or higher, polishing compound	Mirror or near-mirror finish	Reflective surface

Checking Your Progress

After each stage, use these checks:

• Visual: look across the surface at a low angle under good light — scratches and low spots show clearly

• Fingernail test: drag a fingernail across the surface — if it catches on ridges, you are not done with that stage

• Machinist's square: hold against edges to verify flatness and squareness — correct any taper before moving to the next stage

• Layout dye re-application: after each stage, reapply dye to see exactly where the file is cutting

The Clickspring method cited by the University of Florida recommends a light cross-cut pattern at intermediate stages: file a few light diagonal strokes, then look for the pattern to disappear completely on your next pass. Any remaining cross-cut lines show low spots that need more attention. UF Engineering Lab

---

How to Clean and Maintain Metal Files

A dirty file is a dull file. Metal particles wedged between teeth (pins) scratch the workpiece and reduce cutting efficiency by an estimated 40-60% compared to a clean file.

Daily Cleaning

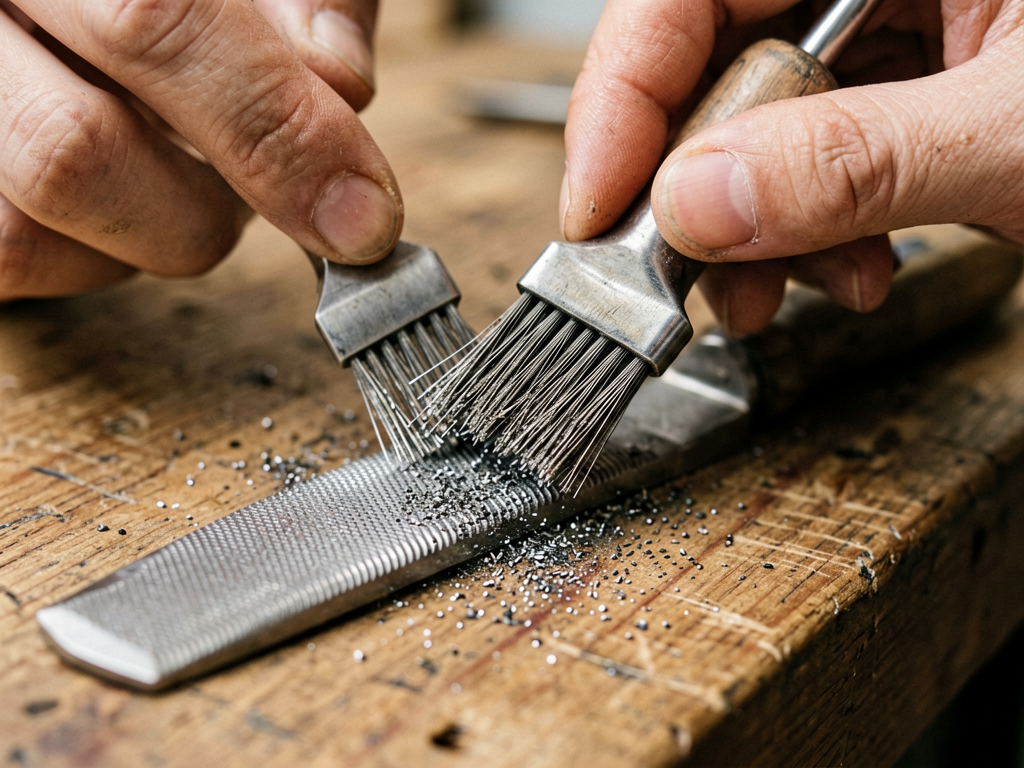

1. After every use, brush the file with a file card. Push the bristles parallel to the teeth (not across them) to dislodge pins.

2. For stubborn pins, use the pick on the back of the file card or a piece of soft brass rod — brass is softer than the file teeth and will not damage them.

3. Never bang a file against a vise or bench to clean it. The impact chips teeth and can shatter hardened file steel.

Preventing Clogging

• Chalk for aluminum and soft metals: rub plain chalk across the teeth before filing. Reapply every 20-30 strokes.

• Oil or lard for very fine work: a thin film of cutting oil or even lard (per wikiHow's traditional recommendation) prevents chips from welding into the teeth during fine finishing on gummy metals.

• Dedicate files by material: keep a separate set of files for aluminum. Once aluminum embeds in file teeth, it is nearly impossible to fully remove and will contaminate subsequent steel work.

Storage and Longevity

• Store files separately, not jumbled in a toolbox drawer. Files rubbing against each other dull the cutting edges. Use file sleeves, a tool roll, or a rack with individual slots.

• Keep files dry. High-carbon steel files (typically 1.2-1.3% carbon content, hardened to 64-66 HRC) will rust if stored in humid conditions.

• A quality file with proper care lasts 3-5 years of regular hobby use or roughly 150-200 hours of active filing before needing replacement. Nicholson and Bahco are the two most frequently recommended brands for beginners based on price-performance ratio. Nicholson File Guide (Crescent Tools)

---

Common Beginner Mistakes (and How to Avoid Them)

Mistake	What Happens	Fix
Pressing down too hard	Broken teeth, deep gouges, uneven surface	Let the file's weight do most of the work — 3-5 lbs max for roughing, less for finishing
Filing on the return stroke	Dull teeth, embedded fragments in workpiece	Lift the file on the backstroke — make it a conscious habit
Using the wrong file for the metal	Rapid clogging (aluminum), poor cut (hard steel)	Cross-reference with the metal-specific guide below
Skipping the file card	Scratched surface, slow cutting, file wear	Clean every 20-30 strokes while working
Filing without layout lines	No way to check progress, uneven removal	Always mark a reference line before starting
Rushing from coarse to fine	Deep coarse-file scratches still visible at final finish	Complete each stage fully before moving on — check with fingernail test
Filing unsupported thin stock	Metal bends, file chatters, uneven surface	Sandwich thin sheet between scrap wood, or use a backing plate
Same file for all metals	Cross-contamination, embedded particles	Dedicate files by metal type — at minimum, separate aluminum from steel files

---

Metal-Specific Filing Guide: Aluminum, Steel, Brass & More

One of the biggest content gaps across all ranking articles is practical, side-by-side metal guidance. Here is a table you will not find elsewhere:

Metal	Best File Type	Chalk Required?	Special Notes
Mild steel (1018, A36)	Double-cut, bastard for roughing; single-cut mill for finishing	No chalk needed	File cuts cleanly with moderate pressure. Second-cut file handles 80% of work.
Stainless steel (304, 316)	High-quality double-cut, bastard or second-cut	No	Work-hardens quickly — use sharp, aggressive strokes. Cheap files dull fast on stainless.
Aluminum (6061, 5052)	Single-cut with chalk coating	Yes — essential	Aluminum is the most clog-prone metal. Chalk every 20 strokes. Dedicate files to aluminum only.
Brass and bronze	Single-cut, smooth or second-cut	Light chalk helps	Cuts easily — single-cut leaves the cleanest edge. Double-cut tends to grab and chatter.
Copper	Single-cut, smooth-cut	Chalk recommended	Gummy when worked — similar to aluminum but less aggressive clogging.
Cast iron	Double-cut, bastard	No	Abrasive to file teeth — expect faster file wear. Use older files for cast iron.
Tool steel (O1, A2, D2)	High-quality double-cut, bastard	No	Very hard — requires sharp, premium files (Swiss-pattern recommended). Annealed tool steel files well; hardened tool steel will destroy files.

Hardness rule of thumb: If the metal is harder than HRC 60 (file hardness is typically 64-66 HRC), a hand file will barely cut it. Test with the corner of a known file — if it skates across without biting, the metal is too hard for hand filing. Switch to abrasive methods (belt sander, angle grinder with flap disc).

---

Frequently Asked Questions

What are the different types of metal files?

Metal files are categorized by three factors: shape (flat, half-round, round, square, triangular), cut coarseness (bastard/coarse, second-cut/medium, smooth/fine), and tooth pattern (single-cut for finishing, double-cut for fast removal). For a beginner's kit, a 10-inch flat bastard-cut file and an 8-inch smooth-cut mill file cover roughly 90% of common filing tasks.

How do I choose the right file for the metal I'm working with?

Match the file to the metal's hardness and tendency to clog. Hard metals like steel and stainless steel need double-cut files with aggressive teeth. Soft, gummy metals like aluminum absolutely require single-cut files coated with chalk to prevent clogging. Use the metal-specific table in this guide for quick reference on each common metal type.

Can I use the same file for wood and metal?

No. Files used on wood should never be used on metal, and vice versa. Wood contains silica and abrasive particles that dull file teeth. Metal filings embedded in a file used on wood will contaminate the wood surface. Additionally, wood files (rasps) have much coarser, individually raised teeth that are fundamentally different from the continuous cutting edges of a metal file.

Why should I file in only one direction?

File teeth are designed to cut in one direction only — the forward push stroke. Dragging the file backward on the return stroke rolls over and dulls the cutting edges, and can break off microscopic tooth fragments that embed in the workpiece surface. Lifting the file on the return stroke is the single highest-impact habit change for better filing results.

How do I prevent my file from clogging when working with aluminum?

Aluminum clogging (pinning) is the most common filing frustration. The fix is simple: before filing, rub ordinary chalk or a file-chalk block across the cutting face so chalk powder fills the spaces between teeth. The chalk acts as a release agent — aluminum chips cannot embed into chalk-filled gaps. Reapply chalk every 20-30 strokes. Also, use a single-cut file (not double-cut) for aluminum — the continuous tooth geometry is less prone to trapping chips.

How do I get a smooth finish with a hand file?

A smooth finish requires the full progressive workflow — not one file. Start with a bastard-cut file for shaping, switch to a second-cut file for intermediate smoothing, then finish with draw filing using a smooth-cut single-cut mill file held perpendicular to the workpiece. After draw filing, switch to 320-grit sandpaper on a flat block. Skipping stages leaves visible scratches from the coarser file.

How often should I clean my metal file?

Clean your file with a file card brush every 20-30 strokes during active work — or immediately if you see metal particles building up between teeth. At the end of each session, give it a thorough brushing. A clean file cuts faster, leaves a better surface, and lasts longer. File card brushes cost under $10 and are arguably the best value investment in any metalworking toolkit.

---

Conclusion

Filing metal is a skill where technique matters far more than strength. The difference between a beginner's result and a professional finish comes down to a handful of disciplined habits: using the right file for the metal, filing in one direction only, cleaning the file every 20-30 strokes, and progressing through coarse-to-fine stages without skipping.

The most important takeaway: slow down. Beginners rush from rough shaping to finishing, skipping the intermediate smoothing stage, and end up with a surface that looks acceptable from a distance but reveals deep scratches up close. Each stage in the progression — bastard → second-cut → smooth → sanding — exists for a reason. Complete each one before moving to the next.

If you take away three things from this guide, make them: lift the file on the return stroke, chalk your file for aluminum, and check your progress frequently against a reference line. These three habits alone will transform your filing results.

For your next project, start with mild steel — it is the most forgiving metal to learn on. Practice filing a 1-inch square bar to a clean 90-degree edge, checking with a machinist's square at every stage. Once you can produce a flat, square edge on mild steel, move on to more challenging metals and more complex shapes.
