The Ultimate Guide to Rotary Files: Types, Applications, and Purchasing Tips
Introduction
Rotary files, often referred to as rotary burrs or carbide burrs, are indispensable tools across various industries due to their versatility and efficiency in material shaping and finishing tasks. These precision tools are designed to remove material from workpieces in a controlled manner, making them ideal for a wide range of applications, from industrial manufacturing to intricate craftwork. For wholesalers and end traders, understanding the utility and benefits of rotary files is crucial, as these tools are in high demand in sectors such as metalworking, automotive, aerospace, and woodworking.
The importance of rotary files lies in their ability to perform tasks that require precision and consistency. Whether it's deburring metal parts, shaping wood, or refining the edges of plastic components, rotary files deliver high-quality results that are difficult to achieve with other tools. Their ability to work on a variety of materials, including metals, plastics, and wood, makes them a versatile choice for professionals who require reliable tools for their projects.
In this comprehensive guide, we will explore the different aspects of rotary files, including their types, materials they can work on, size and shape considerations, and more. This guide aims to equip wholesalers and end traders with the knowledge needed to make informed decisions about stocking and selling rotary files, ultimately enhancing their product offerings and customer satisfaction.
Section 1: What is a Rotary File?

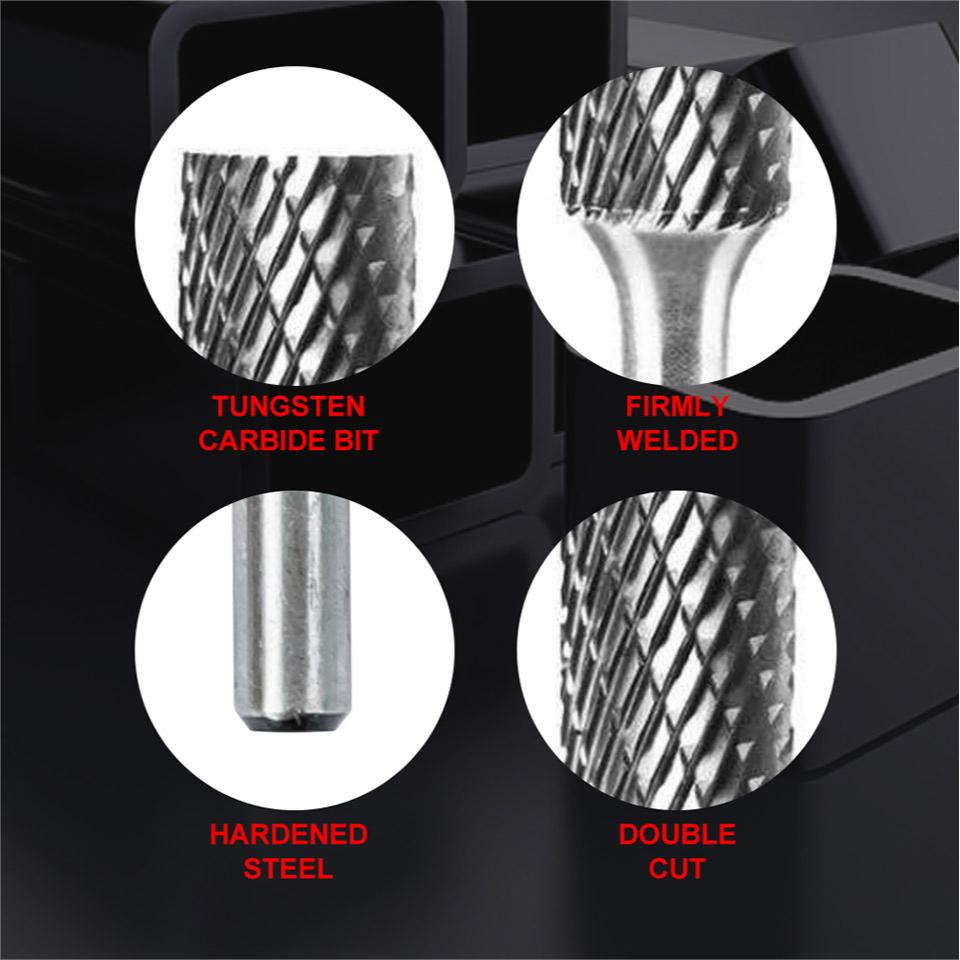

A rotary file, commonly known as a rotary burr or carbide burr, is a specialized cutting tool used for shaping, grinding, and deburring various materials. These tools are characterized by their cylindrical or conical shapes, with sharp, spiral teeth designed to remove material efficiently. Rotary files are typically made from durable materials such as tungsten carbide, high-speed steel (HSS), or diamond-coated composites, allowing them to handle a wide range of tasks in different industrial settings.
The basic structure of a rotary file consists of a shank, which is the part that fits into a rotary tool or die grinder, and a head, which is the working end that interacts with the material. The head of the rotary file comes in various shapes and sizes, each designed for specific applications, such as cutting, grinding, or smoothing surfaces. The cutting action is achieved by rotating the file at high speeds, which allows the sharp edges to carve into the material, effectively removing unwanted sections and shaping the workpiece with precision.
The history of rotary files dates back to the early 20th century when they were first introduced as an innovation in metalworking and machining. Over the years, these tools have evolved significantly, with advancements in materials and manufacturing processes leading to more durable and efficient designs. Initially used primarily in the automotive and aerospace industries, rotary files have since expanded their utility to include applications in woodworking, dentistry, jewelry making, and even sculpture.
Modern rotary files have become essential tools in various industries due to their ability to perform tasks that require a high level of accuracy and control. Whether it's for smoothing weld seams, enlarging holes, or shaping complex surfaces, rotary files offer a level of precision that manual tools cannot match. Their widespread use across multiple sectors highlights their importance as a versatile and reliable tool in both industrial and artisanal settings.
Section 2: Types of Rotary Files

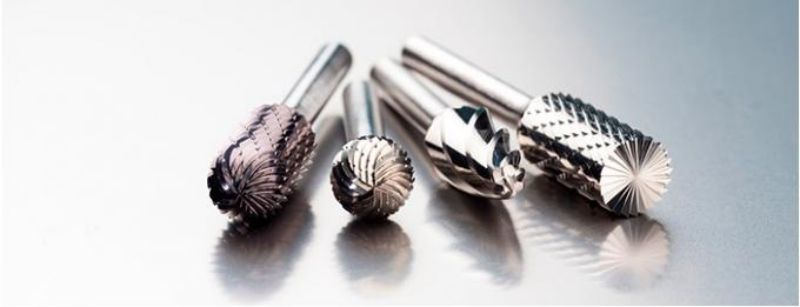

Rotary files come in a variety of shapes and sizes, each designed to perform specific tasks with precision. Understanding the different types of rotary files and their applications is crucial for selecting the right tool for the job, especially in industries where precision and efficiency are paramount. Below, we explore the most common types of rotary files and their uses in various industrial applications.
| Type of Rotary File | Description | Common Applications | Industries |
| Cylindrical | Straight, cylindrical shape. Ideal for surface grinding, shaping, and finishing flat surfaces. | Grinding down welds, smoothing surfaces, enlarging holes. | Automotive, aerospace, metal fabrication, woodworking |
| Tree-Shaped | Tapered design that narrows at the tip. Ideal for accessing tight or hard-to-reach areas. | Deburring, contouring, and finishing intricate areas. | Metalworking, automotive, aerospace |
| Pointed | Sharp, pointed tip with a gradually widening base. Perfect for precision work. | Engraving, etching, chamfering edges. | Jewelry making, engraving, dental labs |
| Ball-Nosed | Spherical tip for smooth, rounded shaping and finishing. | Sculpting, rounding off edges, creating concave surfaces. | Automotive, aerospace, sculpture, manufacturing |
| Oval | Elliptical shape for smoothing and blending curves and rounded edges. | Deburring, shaping curved surfaces, blending weld seams. | Metal fabrication, automotive, general manufacturing |
| Flame-Shaped | A tapered shape resembling a flame. Versatile for detailed sculpting, engraving, and finishing. | Detailed sculpting, engraving, and finishing. | Jewelry making, fine woodworking, detailed metalwork |
| Inverted Cone | Conical shape with the wider part at the tip, ideal for creating grooves and precise angles. | Creating grooves, slots, and precise angles. | Metalworking, machining, tool and die making |
Section 3: Materials Compatible with Rotary Files
Rotary files are versatile tools that can be used on a wide range of materials, making them essential for various industrial and craft applications. Understanding the compatibility of rotary files with different materials is crucial for achieving optimal performance and extending the tool's lifespan. In this section, we will discuss the various materials that can be worked on using rotary files, including metals, plastics, and wood, and provide tips on selecting the right type of rotary file for specific materials.
1. Metals
Metals are among the most common materials worked on with rotary files. These tools are particularly effective in metalworking due to their ability to shape, grind, and smooth metal surfaces with precision. The durability of rotary files, especially those made from tungsten carbide or high-speed steel, allows them to handle the high hardness and density of metals.
| Metal Type | Recommended Rotary File Material | Key Considerations |
| Steel | Tungsten Carbide | Requires a file with high hardness and wear resistance. |
| Stainless Steel | Tungsten Carbide | High wear resistance is needed due to material hardness. |
| Aluminum | High-Speed Steel | Softer metal; use files with a less aggressive cut pattern to prevent clogging. |
| Copper/Brass | High-Speed Steel | Softer metals; choose files that minimize clogging while maintaining a smooth finish. |
| Cast Iron | Tungsten Carbide | Requires high durability due to the abrasive nature of cast iron. |
2. Plastics
Plastics, though generally softer than metals, still require precise tools for shaping and finishing. Rotary files are well-suited for working with plastics, offering control and accuracy in cutting, deburring, and shaping plastic components. However, the choice of the rotary file is crucial to avoid melting or excessive material removal.
Compatible Plastics: Rotary files can be used on various types of plastics, including acrylic, PVC, polycarbonate, and ABS. Each type of plastic reacts differently to heat and friction, so it's important to choose the right file to avoid issues like melting.
Selection Tips: For plastics, consider using rotary files with finer teeth or a less aggressive cut to minimize heat buildup and prevent melting. Files made from high-speed steel are often suitable for plastics, as they provide a good balance of sharpness and control without excessive heat generation.
3. Wood
Woodworking is another area where rotary files excel, offering precision and control for shaping, carving, and finishing wood pieces. Whether you are working with hardwoods like oak and maple or softer woods like pine, rotary files can be used to create intricate designs, smooth surfaces, and refine edges.
Compatible Woods: Rotary files can be used on a wide range of wood types, from hard to soft woods. The choice of wood affects the tool's performance, with hardwoods requiring more durable and sharp rotary files to handle the increased resistance.
Selection Tips: When working with wood, it's important to choose rotary files with larger, more spaced-out teeth to prevent clogging from wood dust and debris. Tungsten carbide files are often preferred for hardwoods due to their durability, while softer woods can be shaped using high-speed steel files for a smoother finish.
Tips for Selecting the Right Rotary File for Specific Materials
Selecting the appropriate rotary file for a specific material involves considering factors like material hardness, density, and desired finish. Here are some general tips to guide your selection:
Material Hardness: Harder materials like metals require rotary files made from tougher materials such as tungsten carbide. These files maintain their sharpness and resist wear, even when working with tough metals like stainless steel or cast iron.
Cut Pattern: The cut pattern of the rotary file should match the material's characteristics. Aggressive cuts are suitable for hard materials, while finer cuts are better for soft materials to prevent excessive material removal and achieve a smooth finish.
Heat Sensitivity: For materials sensitive to heat, such as plastics, choose rotary files that minimize heat buildup during use. High-speed steel files or those with finer teeth can help reduce the risk of melting or warping the material.
Debris Management: To prevent clogging, particularly when working with softer materials like wood or aluminum, opt for rotary files with larger, spaced-out teeth. This design helps to clear debris more effectively and maintain consistent cutting performance.
By understanding the compatibility of rotary files with various materials and selecting the appropriate tool for each job, users can achieve precise results while extending the life of their rotary files. This knowledge is essential for wholesalers and end traders who want to offer their customers the best tools for their specific needs, ensuring satisfaction and repeat business.
Section 4: Size and Shape Considerations
When selecting a rotary file, the size and shape of the tool are critical factors that influence its performance and suitability for specific tasks. The right combination of size and shape can enhance efficiency, precision, and the quality of the finished product. In this section, we will explore how the size and shape of rotary files affect their performance and provide guidance on choosing the right specifications for particular applications.
1. Size Considerations
The size of a rotary file refers primarily to the diameter of its head and the length of its shank. These dimensions directly impact the tool's cutting capacity, reach, and the type of work it can perform.
| File Dimension | Effect | Best Used For |
| Head Diameter | Larger diameters remove more material per pass. | Heavy material removal, large surfaces. |
| Smaller diameters allow for detailed work. | Precision tasks, accessing tight spaces. | |
| Shank Length | Longer shanks offer extended reach. | Reaching deeper or recessed areas, such as in automotive or aerospace applications. |
| Shorter shanks provide more stability and control. | Detailed work requiring precise control, such as engraving or intricate shaping tasks. |
2. Shape Considerations
The shape of a rotary file determines how it interacts with the material and what kind of cuts or finishes it can produce. Different shapes are designed for specific tasks, making it essential to select the appropriate shape for the intended application.
Cylindrical Shape: As mentioned earlier, cylindrical files are ideal for surface grinding and finishing flat areas. Their uniform shape allows for consistent material removal across large, flat surfaces, making them a go-to choice for tasks like deburring and surface smoothing.
Tree-Shaped: Tree-shaped files, with their tapered design, are perfect for accessing tight spaces and working around contours. This shape is especially useful for deburring internal holes or refining edges where a cylindrical file might be too large or unwieldy.
Pointed Shape: Pointed or conical files excel in precision work, particularly in confined spaces or when detailed shaping is required. The sharp tip allows for precise control, making these files ideal for engraving, etching, or creating intricate designs.
Ball-Nosed Shape: Ball-nosed files are used to create concave shapes and smooth out rounded edges. The spherical tip allows for even material removal along curved surfaces, which is particularly useful in tasks that involve sculpting or rounding internal corners.
Flame Shape: Flame-shaped files are versatile tools that can handle a variety of tasks, including detailed carving, engraving, and finishing. The tapered, pointed tip provides precision, while the broader base allows for more substantial material removal when needed.
Inverted Cone Shape: Inverted cone files are designed for creating grooves, slots, and precise angles. Their unique shape is particularly effective in tasks that require sharp edges or precise cuts, such as creating countersinks or chamfers in metalworking.
3. Choosing the Right Size and Shape
Selecting the correct size and shape of a rotary file depends on the specific requirements of the task. Here are some general guidelines to help make the right choice:
Task Requirements: Consider the nature of the task. For large-scale material removal, opt for a larger head diameter, whereas for fine detail work, a smaller diameter and pointed shape might be more appropriate.
Material Characteristics: The hardness and density of the material being worked on can influence the choice of shape and size. For example, harder materials may require a smaller, more precise tool to avoid excessive wear, while softer materials might benefit from larger, more aggressive cuts.
Tool Compatibility: Ensure that the rotary file is compatible with the rotary tool or die grinder, both in terms of size and operational speed. Overloading the tool with a file that is too large or running it at incorrect speeds can lead to poor performance or even damage to the tool and workpiece.
Precision vs. Material Removal: Balance the need for precision with the amount of material to be removed. Detailed work will require smaller, more precise files, while tasks that involve significant material removal might necessitate larger, more robust files.
By carefully considering the size and shape of rotary files, users can achieve the desired results with greater efficiency and accuracy. For wholesalers and end traders, offering a range of sizes and shapes will meet the diverse needs of their customers, ensuring that they have the right tools for every job.
Section 5: Manufacturing Process of Rotary Files
The manufacturing process of rotary files is a highly specialized and precise operation that involves several stages, each designed to ensure the production of durable, high-quality tools. Understanding the intricacies of this process not only highlights the craftsmanship involved but also underscores the importance of quality control in producing tools that meet the rigorous demands of industrial applications. In this section, we will explore the step-by-step manufacturing process of rotary files, highlighting technological advancements and quality assurance practices that contribute to the production of these essential tools.
1. Material Selection
The first step in the manufacturing of rotary files is the selection of raw materials. The most commonly used materials are tungsten carbide, high-speed steel (HSS), and diamond-coated composites. Each of these materials offers specific advantages depending on the intended use of the rotary file.
Tungsten Carbide: Known for its exceptional hardness and resistance to wear, tungsten carbide is the material of choice for rotary files that will be used on hard metals. Its durability makes it ideal for applications where prolonged use and exposure to tough materials are expected.
High-Speed Steel (HSS): HSS is valued for its toughness and ability to withstand high temperatures without losing its hardness. This makes it suitable for rotary files used in applications involving softer metals and other materials where heat buildup might be a concern.
Diamond-Coated Composites: For extremely hard or abrasive materials, diamond-coated rotary files provide unparalleled cutting efficiency and longevity. These files are used in industries where precision and durability are paramount, such as aerospace and advanced manufacturing.
2. Cutting and Shaping
Once the raw material is selected, the next step is cutting the material into the desired shape. This process involves several stages:
Blanks Creation: The raw material is cut into blanks, which are cylindrical rods that will be further shaped into rotary files. The dimensions of these blanks are carefully controlled to match the specifications of the final product.
Rough Shaping: The blanks are then subjected to rough shaping, where the basic profile of the rotary file is formed. This process typically involves CNC (Computer Numerical Control) machines, which ensure precision and consistency across batches.
Grinding and Forming: After rough shaping, the blanks undergo grinding to achieve their final shape. Precision grinding machines equipped with diamond wheels are used to create intricate patterns and sharp edges that characterize the cutting surfaces of rotary files. The grinding process is crucial, as it directly affects the tool's cutting efficiency and longevity.
3. Heat Treatment
Heat treatment is a critical step in the manufacturing process that enhances the hardness and durability of the rotary file. This involves heating the shaped files to high temperatures and then cooling them rapidly, a process known as quenching.
Hardening: The files are heated in furnaces to temperatures that cause the crystalline structure of the material to change, increasing its hardness. This step is especially important for tools made from high-speed steel and tungsten carbide, as it gives them the necessary toughness to withstand demanding industrial applications.
Tempering: After hardening, the files are tempered, a process that involves reheating the files to a lower temperature to reduce brittleness. This step ensures that the rotary files are not only hard but also tough, capable of enduring the stresses of cutting and grinding without breaking.
4. Cutting Edge Formation
Once the files have been hardened and tempered, the next step is the formation of the cutting edges. This process involves precision machining to create the spiral teeth or flutes that will do the actual cutting.
Toothing: The teeth are cut into the rotary file using specialized machines that ensure uniformity and sharpness. The angle, depth, and spacing of the teeth are carefully controlled to optimize the file's performance for specific applications.
Finishing: After the teeth are formed, the files undergo finishing processes, including polishing and coating. Polishing removes any burrs or rough spots, ensuring a smooth surface that minimizes friction during use. In some cases, the files may also receive additional coatings, such as titanium nitride, to enhance their wear resistance and reduce friction.
5. Quality Control
Quality control is an integral part of the manufacturing process, ensuring that each rotary file meets the required specifications and performs as expected.
| Quality Control Stage | Purpose | Tools and Techniques Used |
| Dimensional Inspection | Ensures consistent dimensions across batches. | Laser measurement systems, micrometers. |
| Hardness Testing | Verifies material hardness to ensure durability. | Rockwell hardness testers. |
| Cutting Performance | Confirms the sharpness and cutting efficiency of the edges. | Cutting tests on various materials. |
| Final Inspection | Comprehensive check before packaging and distribution. | Visual inspection, final dimension, and hardness checks. |
6. Packaging and Distribution

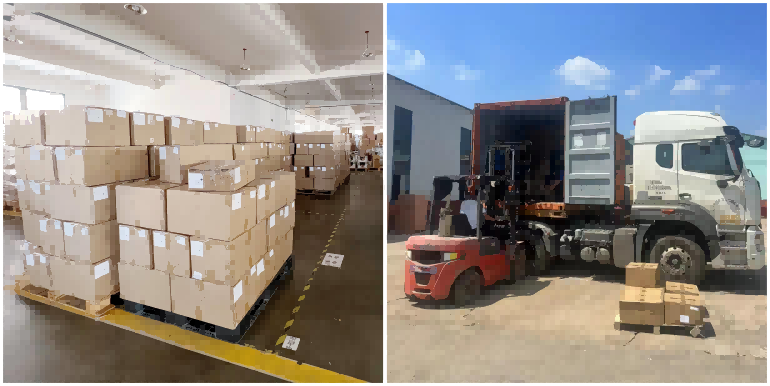

The final stage of the manufacturing process is packaging and distribution. Rotary files are carefully packaged to prevent damage during transport and to provide customers with the information they need about the product.
Packaging: Rotary files are typically packaged in protective cases or tubes that prevent the cutting edges from being damaged. The packaging often includes labels with information about the file’s size, shape, material, and recommended applications.
Distribution: Once packaged, the files are distributed to wholesalers and retailers, ready to be used by professionals in various industries. Efficient distribution channels ensure that these essential tools reach their markets promptly, maintaining the supply chain that supports industrial operations worldwide.
By understanding the manufacturing process of rotary files, wholesalers and end traders can better appreciate the craftsmanship and technology that go into these essential tools. This knowledge not only helps in making informed purchasing decisions but also in communicating the value of high-quality rotary files to customers, ensuring satisfaction and long-term business relationships.
Section 6: Quality and Durability
The quality and durability of rotary files are critical factors that determine their performance, longevity, and overall value in industrial applications. High-quality rotary files not only provide superior cutting and shaping capabilities but also offer longer service life, reducing the need for frequent replacements and minimizing downtime. In this section, we will explore the key factors that contribute to the quality and durability of rotary files and offer guidance on how to assess these attributes before making a purchase.
| Quality Factor | Importance | Indicators of High Quality |
| Material Composition | Determines hardness, wear resistance, and cutting efficiency. | Use of tungsten carbide, HSS, or diamond-coated composites. |
| Manufacturing Precision | Ensures sharpness, uniformity, and consistent performance. | Advanced CNC machining, uniform teeth spacing. |
| Heat Treatment | Enhances hardness and toughness, reducing brittleness. | Proper hardening and tempering processes. |
| Protective Coatings | Reduces friction, wear, and corrosion. | Even application of coatings like titanium nitride or diamond. |
By focusing on these factors, wholesalers and end traders can ensure that they are offering high-quality, durable rotary files to their customers. This not only enhances customer satisfaction but also helps build a reputation for reliability and excellence in the marketplace.
Section 7: Practical Applications
Rotary files are versatile tools utilized across multiple industries for precise cutting, shaping, and finishing tasks. Here's a condensed overview of their practical applications:
Automotive Industry: Used for deburring, porting, and finishing engine components to enhance precision and airflow, improving engine performance.
Aerospace Industry: Employed in shaping and maintaining aircraft components using materials like titanium and Inconel, ensuring adherence to stringent aerospace standards.
Metalworking and Fabrication: Essential in cutting, shaping, and cleaning welds in industrial and artisan metalwork, contributing to the quality and safety of metal products.
Woodworking: Facilitates detailed carving, shaping, and finishing of wood, useful in furniture making and other wood crafts for achieving high-quality finishes.
Dental Laboratories: Also known as dental burs, these are crucial in the shaping and finishing of dental prosthetics and crowns, ensuring precision and patient satisfaction.
These applications underscore the significance of rotary files in enhancing efficiency, precision, and quality across varied sectors, making them valuable for advising customers in wholesale and trade industries.
Section 8: Purchasing Advice
When it comes to purchasing rotary files, making the right choice is crucial for ensuring that businesses acquire tools that meet their specific needs while offering durability, efficiency, and cost-effectiveness. For wholesalers and end traders, understanding the factors that influence purchasing decisions can help them guide their customers toward the best products, ultimately leading to increased satisfaction and repeat business. In this section, we provide comprehensive advice on how to choose the best rotary files for different business needs, focusing on factors such as cost-effectiveness, bulk buying advantages, and return on investment (ROI).
| Consideration | Details | Recommendations |
| Material Compatibility | Choose files based on the materials you work with most frequently. | Tungsten carbide for metals, HSS for plastics and softer metals. |
| Precision Requirements | Select files that offer the level of precision your tasks require. | Smaller, pointed files for detailed work; larger files for bulk material removal. |
| Bulk Buying | Consider purchasing in bulk for cost savings. | Establish relationships with suppliers for discounts and priority access. |
| ROI | Evaluate the long-term value of higher-quality tools. | Invest in durable, high-quality files that reduce replacement frequency. |
Section 9: Maintenance and Safety
Proper maintenance and adherence to safety guidelines are essential for ensuring the longevity of rotary files and preventing workplace accidents. Rotary files are precision tools that require careful handling and regular upkeep to maintain their performance. In this final section, we will discuss best practices for maintaining rotary files and important safety guidelines to follow during their use.
1. Maintenance Tips for Longevity
Regular maintenance of rotary files can significantly extend their lifespan and ensure consistent performance. Here are some key maintenance practices:
Cleaning: After each use, rotary files should be thoroughly cleaned to remove debris and material build-up. Using a stiff brush or compressed air can help dislodge particles trapped between the teeth. For more stubborn build-up, soaking the file in a solvent or using an ultrasonic cleaner can be effective.
Sharpening: Over time, the cutting edges of rotary files may become dull. Regularly inspect the file for signs of wear and, if necessary, sharpen the edges using a diamond file or a specialized sharpening tool. This helps maintain cutting efficiency and reduces the risk of damaging workpieces.
Storage: Store rotary files in a dry, clean environment, preferably in a protective case or holder that prevents them from knocking against each other. Proper storage minimizes the risk of damage to the cutting edges and ensures the tools are ready for use when needed.
Avoid Overheating: Excessive heat can damage rotary files, particularly those made from high-speed steel. When using a rotary file, avoid applying excessive pressure, which can generate heat. Instead, let the tool do the work, and take breaks as needed to allow the file to cool down.
2. Safety Guidelines
Using rotary files safely is crucial to prevent accidents and injuries in the workplace. Here are some essential safety tips:
Wear Protective Gear: Always wear appropriate personal protective equipment (PPE) when using rotary files. This includes safety glasses to protect your eyes from flying debris, gloves to protect your hands from sharp edges, and a dust mask or respirator if working with materials that generate harmful dust.
Secure the Workpiece: Ensure that the workpiece is securely clamped or held in place before using a rotary file. A moving or unstable workpiece can lead to accidents, including slips that could cause injury.
Use the Right Tool for the Job: Select the appropriate rotary file for the material and task at hand. Using the wrong file can lead to tool breakage, reduced performance, and increased risk of accidents.
Check Tool Condition: Before using a rotary file, inspect it for any signs of damage, such as cracks or excessive wear. Do not use damaged tools, as they can fail during operation and cause injury.
Follow Manufacturer's Instructions: Always adhere to the manufacturer's guidelines regarding tool speed, pressure, and operation. Exceeding recommended speeds or applying excessive force can lead to tool failure and accidents.
Conclusion
By following these maintenance and safety guidelines, users can ensure that their rotary files remain in excellent condition and that their work environment remains safe. For wholesalers and end traders, providing customers with this information can enhance their reputation as a reliable source of quality tools and expert advice.
Final Thoughts
Rotary files are powerful and versatile tools that are critical in various industries, from automotive and aerospace to woodworking and dental technology. Understanding the different types of rotary files, their applications, and the best practices for purchasing, maintaining, and using them can significantly impact the success of businesses that rely on these tools.
For wholesalers and end traders, offering a comprehensive range of high-quality rotary files and providing customers with valuable advice can set them apart in a competitive market. Businesses can ensure long-term success and build lasting partnerships with their clients by investing in quality, fostering strong supplier relationships, and focusing on customer satisfaction.
