A Complete Guide to Steel Files: Types, Uses, and Maintenance
Section 1: Introduction to Steel Files
Overview of Steel Files
Steel files are essential tools used across various industries for shaping, smoothing, and finishing materials like metal, wood, and plastic. Their versatility and precision make them indispensable for tasks ranging from detailed craftsmanship to heavy-duty metalworking.
Importance in Various Industries
Steel files play a crucial role in industries such as automotive, aerospace, woodworking, and jewelry making. They are used by machinists, hobbyists, and professionals alike for tasks that require meticulous detail and accuracy.
Brief History
The use of files dates back to ancient times when early humans used rudimentary tools to shape materials. Over the centuries, the design and manufacture of files have evolved significantly, leading to the sophisticated steel files we use today. Historical records indicate that files were made of softer materials like bronze before the development of steel allowed for more durable and effective tools.
Section 2: Types and Designs of Steel Files
Machinist Files
Machinist files are specialized tools used primarily in metalworking. These files come in various shapes, such as flat, round, and triangular, each designed for specific tasks. Flat files are used for general-purpose filing, round files for enlarging round holes or filing concave surfaces, and triangular files for working on angles and corners. The cut of the file, which can be single, double, or rasp, also determines its application, with double-cut files used for rapid material removal and single-cut files for finishing and sharpening.
| File Type | Shape | Cut Types | Typical Uses |
| Flat File | Rectangular | Single, Double | General purpose filing, smoothing flat surfaces |
| Half-Round File | Half-round | Single, Double | Rounding out holes, concave surfaces, flat surfaces |
| Round File | Round | Single, Double | Enlarging holes, smoothing circular openings |
| Triangle File | Triangular | Single, Double | Filing angles, cleaning out corners, sharpening saw teeth |
| Square File | Square | Single, Double | Filing slots, keyways, and square holes |
| Mill File | Rectangular | Single | Sharpening blades, smoothing metals |
| Needle File | Various | Single, Double | Detailed work, jewelry making, model making |
| Rasp File | Various | Coarse | Woodworking, shaping wood |
| Diamond File | Various | Diamond coated | Hard materials like glass, ceramics, stone |
Saw Files
Saw files are essential for maintaining and sharpening saw blades. They are typically triangular to match the tooth shape of saw blades, allowing users to sharpen the teeth accurately. Saw files come in different sizes to accommodate various saw tooth configurations, ensuring the saw remains effective and precise in its cutting tasks.
Diamond Files
Diamond files are coated with diamond particles, making them incredibly hard and effective at cutting through tough materials like glass, ceramics, and hardened steel. These files are available in different shapes and sizes, making them versatile tools for fine detailed work and finishing tasks. Due to their durability and precision, diamond files are often used in industries requiring high precision, such as jewelry making and electronics.
Other Types
Needle Files: Small, precise files used for intricate work on small objects, often in jewelry and model making.
Rasp Files: Coarse files used primarily in woodworking for rapid material removal.
Mill Files: Versatile, single-cut files used for sharpening tools and general-purpose filing.

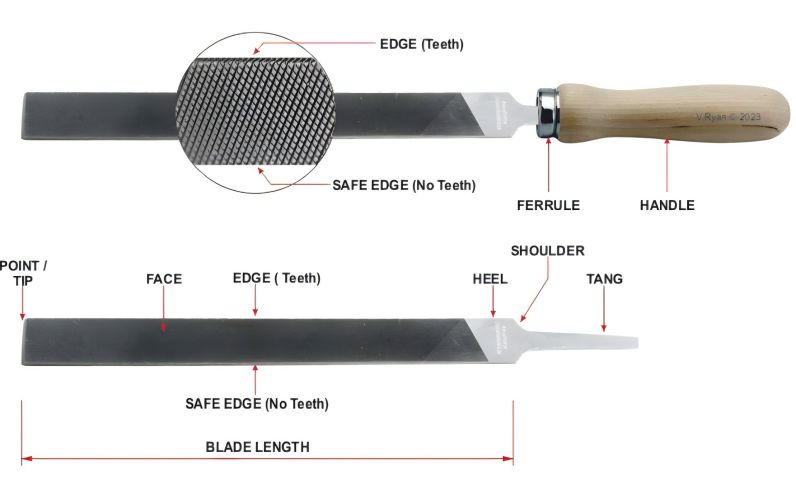

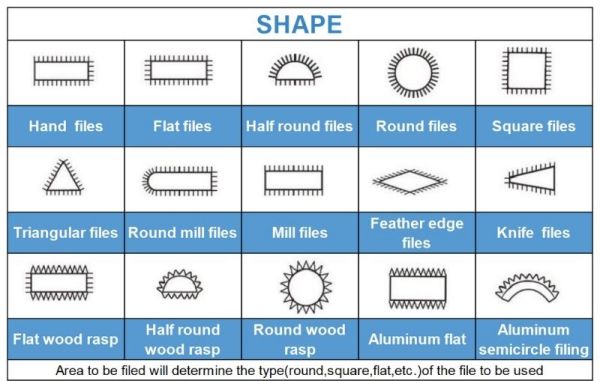

Design Elements
The design of a steel file includes several key elements:
Shape: Determines the file’s application and efficiency in various tasks.
Cut: The arrangement and pattern of teeth on the file surface, affect how material is removed.
Length: Ranges from a few inches to over a foot, influencing control and material removal rate.
Taper: The gradual reduction in width or thickness along the file’s length, aiding in precision work.
Each of these design elements is tailored to specific tasks, ensuring that users can find a file perfectly suited to their needs.
Section 3: Manufacturing and Production of Steel Files
Material Selection
The quality and durability of steel files largely depend on the materials used in their construction. Typically, high-carbon steel is chosen for its hardness and ability to maintain a sharp edge. This material ensures that the file remains effective over prolonged use and can withstand the rigors of various filing tasks. Some files, like diamond files, incorporate diamond particles for enhanced cutting ability and durability.

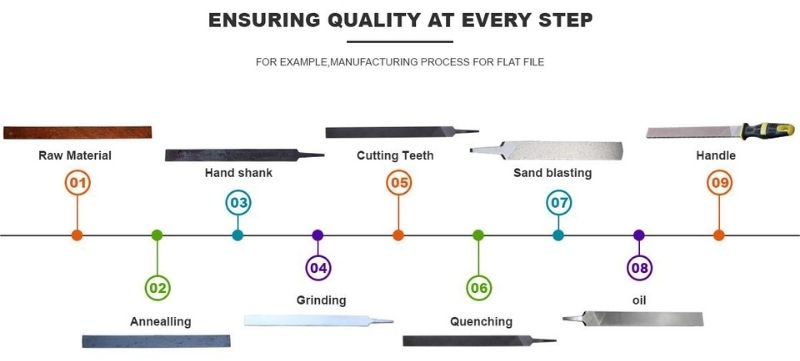

Production Process
The production of steel files involves several precise steps to ensure the final product meets high standards of quality and performance:
Forging: High-carbon steel rods are heated and forged into the desired shape and size.
Cutting: Teeth are cut into the file using specialized machines. The type of cut (single, double, rasp) is determined by the file's intended use.
Hardening: The files are then hardened through a heat treatment process, which involves heating the file to a high temperature and then rapidly cooling it to increase hardness.
Tempering: This step reduces the brittleness of the file by reheating it to a lower temperature and allowing it to cool slowly, balancing hardness with toughness.
Finishing: Finally, the files are cleaned, polished, and inspected to ensure they meet strict quality standards. Any additional coatings, such as diamond particles, are applied during this stage.
Quality Control
Quality control is a critical part of the manufacturing process. Each file undergoes rigorous inspection to ensure it meets specific criteria for dimensions, hardness, and tooth pattern. High-quality steel files should exhibit uniform teeth, consistent hardness, and no defects that could affect performance. Advanced testing equipment and experienced inspectors play a vital role in maintaining these standards.
Section 4: Technical Specifications of Steel Files
Measurements
Steel files come in various sizes, typically measured by length, ranging from as small as 3 inches to as long as 14 inches or more. The length of the file is chosen based on the specific task at hand, with shorter files providing greater control for detailed work and longer files allowing for faster material removal.
Length: Common lengths include 4", 6", 8", 10", and 12".
Width and Thickness: These dimensions vary depending on the file type, with some files being wider and thicker for more aggressive material removal.
Standards and Grades
Steel files are classified according to several standards that define their shape, size, and cutting pattern. These standards ensure consistency and reliability across different manufacturers. Some of the common standards include:

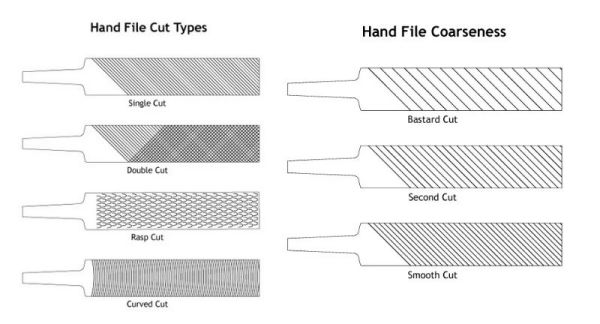

American Standard (Bastard, Second Cut, Smooth): This classification refers to the coarseness of the file's teeth, with "Bastard" being the coarsest and "Smooth" the finest.
Swiss Pattern Files: Known for their precision, Swiss pattern files come in various cuts (00, 0, 1, 2, 3, 4, 5, 6) with increasing fineness.
Performance Characteristics
Several key characteristics influence the performance of a steel file:
Cut Type: Single-cut files are used for smooth finishing, while double-cut files are designed for rapid material removal. Rasp-cut files are specifically for wood and other soft materials.
Hardness: A measure of the file's resistance to wear and deformation, typically indicated by the Rockwell hardness scale. High-quality files have a Rockwell hardness of around 60-64 HRC.
Tooth Geometry: The shape and arrangement of the teeth affect how the file interacts with the material, influencing both the speed and smoothness of the cut.
Application Suitability
Different technical specifications make steel files suitable for various applications. For instance:
Machinist Files: Best for metalworking due to their precise tooth patterns and hardness.
Needle Files: Ideal for delicate work in jewelry and model making due to their small size and fine cuts.
Diamond Files: Suitable for hard materials like glass and ceramics because of their superior cutting ability and durability.
Section 5: Using Steel Files

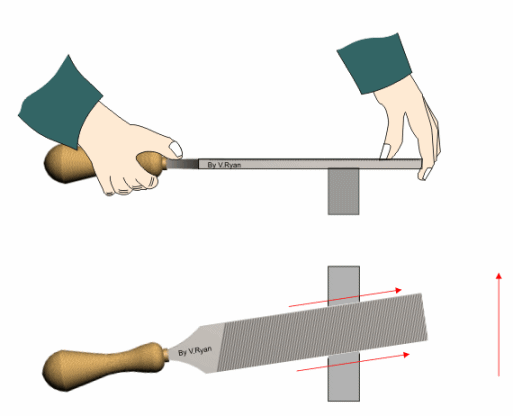

Best Practices
Using steel files effectively requires understanding proper techniques and best practices to ensure both the tool's longevity and the quality of the work. Here are some essential tips:

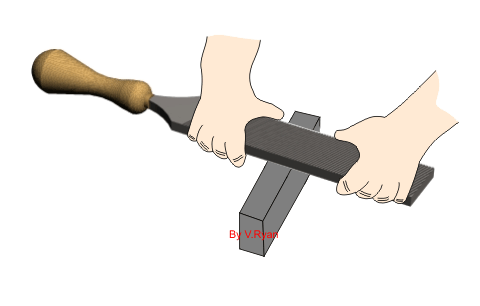

Correct Grip: Hold the file by the handle with your dominant hand and support the tip with your other hand. This grip provides control and precision.
The angle of Use: Maintain a consistent angle relative to the workpiece. For most tasks, a 45-degree angle is effective.
Pressure Application: Apply even pressure on the forward stroke (cutting stroke) and lift the file on the return stroke to avoid dulling the teeth.
Direction of Filing: Always file in one direction, typically away from your body, to ensure a smooth and even surface.
Common Applications
Steel files are versatile tools used in a variety of applications across different industries:
Metalworking: Machinists use files for deburring, shaping, and finishing metal parts.
Woodworking: Woodworkers use files (rasps) to shape and smooth wood surfaces, especially in carving and detailed work.
Automotive: Mechanics use files for engine repair, part fitting, and modifying components.
Jewelry Making: Jewelers use needle files for detailed work on metals and gemstones, requiring precision and fine control.
DIY Projects: Hobbyists use files for a range of tasks, from model-making to home repairs.
Tips for Beginners
For those new to using steel files, consider these tips to get started:
Start with a Basic Set: A set of basic files, including flat, round, and triangular files, will cover most tasks.
Practice on Scrap Material: Before working on a final piece, practice on scrap material to develop your technique.
Keep the File Clean: Regularly clean the file with a wire brush or file card to remove debris and maintain cutting efficiency.
Use Proper Lighting: Ensure your workspace is well-lit to see the material and file clearly, improving precision and safety.
Section 6: File Handles
Importance of Handles
The handle of a steel file is crucial for both safety and effectiveness. A proper handle provides a secure grip, reducing the risk of slippage and ensuring better control over the file's movement. This control is essential for achieving precise results and avoiding damage to the workpiece or injury to the user.
Types of Handles
File handles come in various types, each suited to different preferences and tasks. Common types include:
Wood Handles: Traditional and comfortable, providing a good grip. They are often used with larger files.
Plastic Handles: Durable and often ergonomically designed to reduce hand fatigue. They are easy to clean and maintain.
Rubberized Handles: Offer superior grip and comfort, especially when working for extended periods. They help reduce vibrations and improve control.
Interchangeable Handles: This allows users to switch handles between different files, offering versatility and convenience.
How to Choose the Right Handle
Selecting the right handle for your file depends on several factors:
File Size and Type: Larger files generally require larger, more robust handles, while smaller files, like needle files, need smaller, precision handles.
Comfort: Choose a handle that feels comfortable in your hand, especially if you'll be using the file for extended periods.
Grip and Control: Ensure the handle provides a secure grip and enhances your control over the file. Ergonomically designed handles can help reduce fatigue.
Material Preference: Decide between wood, plastic, or rubberized handles based on personal preference and the specific requirements of your work.
| Handle Type | Pros | Cons | Best For |
| Wood Handles | Traditional feel, sturdy, and durable. | Can become slippery when wet, and may require maintenance. | General use, especially for those who prefer a classic look and feel. |
| Rubber Handles | Excellent grip, is comfortable, and reduces vibration. | May wear out over time with heavy use. | Prolonged use, tasks requiring a secure grip, reducing hand fatigue. |
| Plastic Handles | Lightweight, often ergonomic, affordable. | Less durable than wood or rubber, can become brittle. | Light to medium use, cost-effective option. |
| Combination Handles | Combine materials (e.g., wood core with rubber coating) for enhanced comfort and grip. | Can be more expensive. | Versatile use, balancing comfort, durability, and grip. |
Attaching and Removing Handles
Properly attaching and removing file handles is important for safety and performance:
Attaching: Most file handles are designed to be tapped onto the tang (the pointed end of the file). Ensure the handle is securely fitted without any wobbling.
Removing: If a handle needs to be replaced, carefully tap it off using a mallet or similar tool, ensuring no to damage the tang.
Maintenance of File Handles
To ensure the longevity and effectiveness of file handles:
Regular Inspection: Check handles regularly for signs of wear or damage. Replace any handles that show cracks or significant wear.
Cleaning: Keep handles clean and dry to prevent deterioration. Wooden handles can be treated with oil to maintain their condition.
Storage: Store files with their handles attached in a dry, safe place to avoid damage to both the file and handle.
Section 7: Maintenance and Care of Steel Files

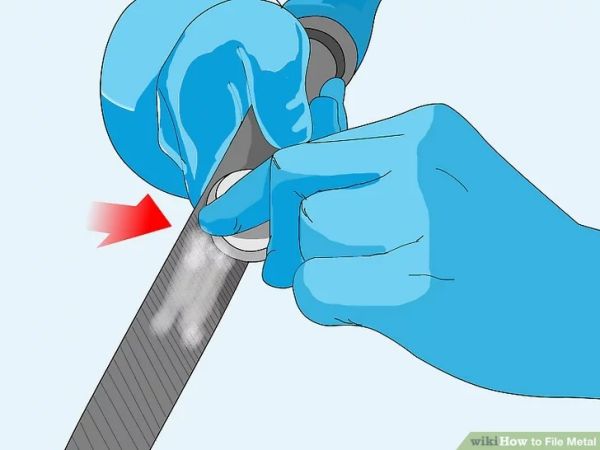

Cleaning Methods

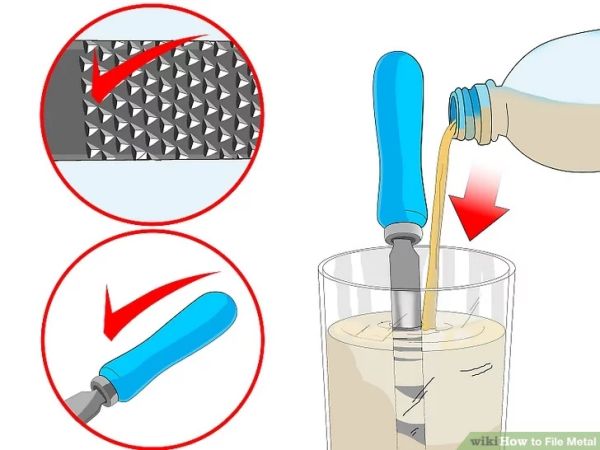

Proper cleaning is essential to maintain the performance and longevity of steel files. Here are some effective cleaning methods:

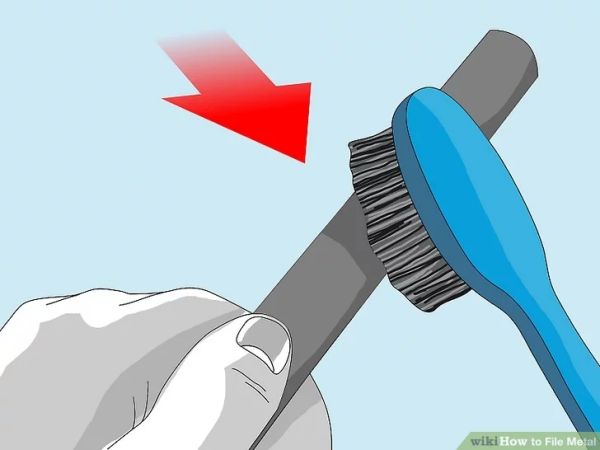

File Card: Use a file card, or a specialized brush, to remove debris and filings from between the teeth. Brush along the teeth's direction to avoid damaging them.
Wire Brush: A stiff wire brush can also be used to clean the file, especially for removing more stubborn materials.
Solvent Cleaning: For files clogged with resin or other sticky substances, use a solvent like mineral spirits to dissolve the material. Apply the solvent with a brush and scrub gently.
Storage Tips
Storing steel files properly prevents damage and extends their lifespan. Consider these tips:
Dry Environment: Store files in a dry place to prevent rust. Humidity can cause corrosion, affecting the file's performance.
Protective Cases: Use protective cases or tool rolls to keep files organized and prevent them from knocking against each other, which can dull the teeth.
Hanging Storage: Hanging files on a pegboard or wall-mounted rack can keep them accessible and safe from damage.
Longevity Practices
To ensure your steel files last as long as possible, follow these practices:
Avoid Overheating: Excessive heat can soften the teeth, reducing their effectiveness. Avoid using files on materials that generate excessive heat.
Use Correctly: Always use the file for its intended purpose. Using a file on the wrong material can quickly wear it down.
Regular Maintenance: Clean and inspect your files regularly to ensure they remain in good condition. Address any signs of wear or damage promptly.
Sharpening and Refurbishing Files
Over time, files may become dull and less effective. While sharpening steel files is not as common as other tools, some methods can help rejuvenate them:
Chemical Sharpening: Soaking the file in a mild acid solution (like vinegar) can help sharpen the teeth by removing a small amount of material. Rinse and dry the file thoroughly after soaking.
Professional Refurbishing: For high-quality files, consider professional refurbishing services that can restore the file's sharpness and effectiveness.
Signs of Wear and When to Replace
Recognizing when a file is worn out and needs replacement is crucial for maintaining efficiency:
Smooth Teeth: If the teeth become smooth or shiny, the file is likely worn out and should be replaced.
Reduced Performance: If the file no longer removes material effectively or requires excessive pressure to work, it may need replacement.
Visible Damage: Any cracks, chips, or significant wear on the file indicates it’s time for a new one.
Section 8: Advanced Topics in Steel Files
Specialized Files
In addition to standard files, there are several specialized files designed for specific applications. These files offer unique features and benefits tailored to particular tasks:
Precision Files: Used in fine metalworking, precision files provide exact control and are often used in tool and die-making.
Needle Files: These small, slender files are perfect for detailed work in tight spaces, commonly used in jewelry making and electronics.
Riffler Files: Double-ended files with various shapes on each end, used for intricate shaping and finishing in sculpting and restoration work.
Innovations in File Technology
The field of file manufacturing has seen several innovations aimed at improving performance and durability:
Coatings and Treatments: Advanced coatings, such as titanium nitride or diamond, enhance the hardness and cutting ability of files, extending their lifespan.
Ergonomic Designs: Modern file handles and shapes are designed to reduce user fatigue and improve control, making them more comfortable for extended use.
Precision Engineering: Advances in manufacturing technology have led to files with more precise and uniform teeth, improving their efficiency and consistency.
Case Studies
Understanding the practical applications of steel files can provide valuable insights. Here are a few case studies demonstrating their use:
Automotive Industry: Steel files are essential in the automotive industry for deburring, fitting parts, and performing precise modifications during vehicle assembly and repair.
Aerospace Industry: In aerospace, files are used for fine-tuning components, ensuring that parts meet strict tolerances and specifications for safety and performance.
Restoration Projects: Files play a critical role in the restoration of antique furniture and machinery, allowing for careful removal of rust and smoothing of surfaces without damaging the underlying material.
Environmental Considerations
The production and use of steel files also have environmental impacts. Here are some considerations:
Sustainable Materials: Some manufacturers are exploring the use of recycled materials in the production of steel files to reduce environmental impact.
Waste Management: Proper disposal and recycling of worn-out files are essential to minimize waste. Many files can be recycled for their metal content.
Eco-Friendly Practices: Implementing environmentally friendly practices in manufacturing, such as reducing emissions and energy consumption, helps in creating a more sustainable industry.
Future Trends
Looking ahead, several trends are likely to shape the future of steel files:
Smart Tools: Integration of smart technology in tools, including files, to provide feedback on usage and wear, enhancing efficiency and maintenance.
New Materials: Development of new materials that offer better performance and longer life, such as advanced composites and alloys.
Customization: Increased availability of custom-designed files to meet specific needs and preferences of users in various industries.
Section 9: Purchasing Steel Files
What to Consider When Buying
When purchasing steel files, it's important to consider several factors to ensure you get the right tools for your needs:
Type of File: Choose the type of file based on the material you'll be working with and the specific tasks you need to perform. For example, machinist files for metalworking, rasp files for woodworking, and diamond files for hard materials.
Quality: High-quality files are made from durable materials and undergo rigorous manufacturing processes. Look for reputable brands and check for certifications or standards.
Size and Shape: Select the appropriate size and shape of the file for your specific application. Smaller files are ideal for detailed work, while larger files are better for broader tasks.
Cut Type: Consider whether you need a single-cut, double-cut, or rasp file based on the level of material removal and finishing required.
Handle: Evaluate the type of handle, ensuring it provides a comfortable and secure grip. Ergonomic handles are beneficial for extended use.
Trusted Brands
Several brands are known for producing high-quality steel files. Here are a few trusted names in the industry:
Nicholson: Renowned for its wide range of high-quality files, suitable for various applications.
Bahco: Offers precision-engineered files known for their durability and performance.
Grobet: Known for their Swiss-pattern files, Grobet provides precision tools for detailed work.
Pferd: Offers a broad selection of files, including innovative designs and coatings for enhanced performance.
Wholesaler Tips
For buyers and wholesalers, purchasing steel files in bulk can provide cost savings and ensure a steady supply for your needs. Here are some tips for wholesalers:
Bulk Purchasing: Consider bulk purchasing to take advantage of discounts and lower per-unit costs. Ensure that the quality remains consistent across the bulk order.
Supplier Relationships: Build strong relationships with reliable suppliers to ensure timely delivery and access to the latest products.
Market Trends: Stay informed about market trends and innovations in file technology to offer the best products to your customers.
Inventory Management: Maintain a well-organized inventory system to keep track of stock levels and avoid overstocking or stockouts.
Where to Buy
Steel files are available from various sources, including:
Specialty Tool Shops: These stores often have a wide selection of high-quality files and knowledgeable staff to assist with your purchase.
Online Retailers: Websites like Amazon, eBay, and specialty tool retailers offer a broad range of files with customer reviews to guide your decision.
Industrial Suppliers: Companies that supply tools to industries often carry a comprehensive selection of files suitable for professional use.
Local Hardware Stores: For immediate needs, local hardware stores usually stock basic types of steel files.
Pricing and Budgeting
Prices for steel files can vary widely based on the type, quality, and brand. Here's a general guide to help with budgeting:
Basic Files: $5 to $20 each, suitable for occasional use or basic tasks.
Mid-Range Files: $20 to $50 each, offering better quality and durability for regular use.
High-End Files: $50 and up, often featuring advanced materials and coatings for professional use.
Section 10: Glossary of Terms Related to Steel Files
Bastard Cut: A medium-coarse file cut used for general-purpose filing. It falls between the coarsest (rough cut) and the finest (smooth cut) in terms of aggressiveness and material removal.
Double-Cut: A file with two sets of diagonal teeth that intersect, creating a crosshatch pattern. This type is used for rapid material removal.
File Card: A specialized brush used to clean the teeth of a file, ensuring it remains effective by removing debris and filings that can clog the teeth.
Flat File: A file with a flat surface on both sides, used for smoothing and shaping flat surfaces. It is one of the most common file types.
Half-Round File: A file with one flat side and one rounded side, versatile for working on both flat and curved surfaces.
Mill File: A single-cut file used primarily for sharpening mill or circular saw blades, but also useful for general-purpose metalworking tasks.
Needle File: A small, precise file used for detailed work, often in jewelry making, model making, and intricate metalwork.
Rasp Cut: A type of file cut with coarse, individually raised teeth, used primarily in woodworking for rapid material removal.
Rockwell Hardness (HRC): A scale used to measure the hardness of a material, typically indicating how well a file will resist wear and maintain its cutting ability.
Single-Cut: A file with a single set of diagonal teeth, typically used for finishing and sharpening, providing a smoother finish compared to double-cut files.
Swiss Pattern File: Precision files that come in a range of cuts (00, 0, 1, 2, 3, 4, 5, 6), with 00 being the coarsest and 6 being the finest. They are known for their accuracy and fine workmanship.
Tang: The pointed end of a file that fits into a handle, providing a secure grip for the user.
Triangular File: A file with three flat sides, used for filing corners, angles, and notches. Commonly used in saw sharpening.
Vixen File: A file with curved teeth, designed for smooth, precise cutting of soft metals like aluminum and lead.
Ward File: A type of file used for keymaking, with thin, flat profiles and fine teeth to cut precise shapes into key blanks.
Conclusion
Steel files are indispensable tools with a rich history and a wide range of applications. From selecting the right type and understanding their construction to mastering filing techniques and proper maintenance, this comprehensive guide provides all the information you need to make the most of these versatile tools. Whether you’re a beginner or an experienced craftsman, the insights and tips shared here will help you achieve professional results and prolong the life of your files.
Call to Action
If you found this guide helpful, consider subscribing to our newsletter for more detailed guides and practical tips on tools and craftsmanship. Don’t miss out on our video tutorials that provide step-by-step instructions for various projects. Subscribe now and take your skills to the next level!
