Rotary File Basics: The Ultimate Beginner’s Guide to Precision Tools

---

When it comes to precision work in metalworking or woodworking, having the right tool is essential. If you've ever faced challenges with finishing edges, shaping materials, or removing excess material from hard-to-reach areas, you know the frustration of trying to achieve a perfect finish. This is where the rotary file comes in—it's a versatile tool that can make your work easier and more efficient.

What is a Rotary File?

A rotary file, also known as a carbide burr or rotary burr, is a cutting tool designed for use with rotary tools like die grinders or Dremels. It's used to shape, smooth, and finish materials such as metal, wood, plastic, and stone. The tool's cylindrical or conical shape allows for detailed and precise work, making it a staple in industries ranging from automotive repair to fine jewelry.

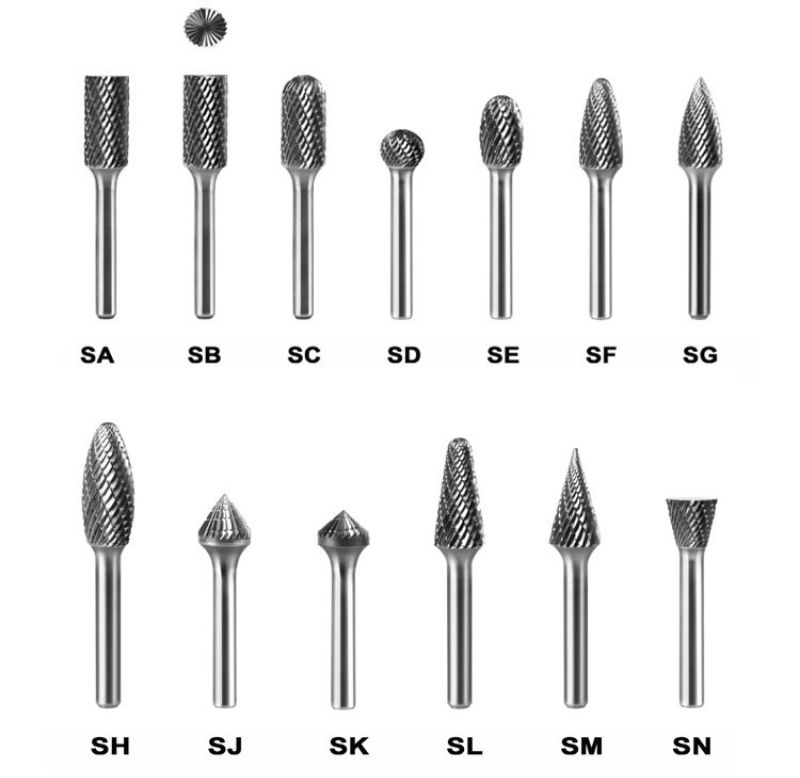

Types of Rotary Files

Rotary files come in various shapes and sizes, each suited to different tasks:

Rotary File Types and Their Uses

Overview of different rotary file types and their common applications.

Type	Shape	Common Uses
Cylindrical Rotary Files	Cylinder	Surface leveling, contouring, creating flat surfaces, and smoothing out welds.
Ball-Shaped Rotary Files	Sphere	Creating concave surfaces, enlarging holes, and detailed work in woodworking and metalworking.
Cone-Shaped Rotary Files	Cone	Deburring, chamfering, creating angled edges, and smoothing out sharp corners.
Flame-Shaped Rotary Files	Flame/Bullet	Detailed carving, sculpting, and intricate work in artistic applications and fine jewelry.

Each type of rotary file is typically made from materials like tungsten carbide, ensuring durability and efficiency even when working with tough materials.

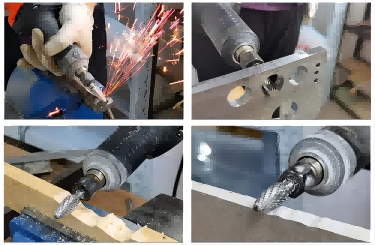

How to Use a Rotary File (In-depth)

Using a rotary file effectively requires some technique. Here’s a step-by-step guide:

Step-by-Step Guide to Using a Rotary File

1. Select the Right File

• Description: Choose the appropriate rotary file shape and size based on the material and the task at hand.

• Tip: Refer to Table 1 to match the file type with your specific application.

2. Secure the Workpiece

• Description: Ensure that your material is firmly secured to prevent movement during operation.

• Tip: Use clamps or a vise to hold the workpiece steady.

3. Adjust Speed Settings

   Material	Recommended Speed (RPM)
   Wood	10,000 - 15,000
   Plastic	8,000 - 12,000
   Aluminum	12,000 - 18,000
   Steel	15,000 - 25,000
   Stone	20,000 - 30,000

   Suggested speed settings for various materials.

• Description: If your rotary tool has variable speed settings, choose a lower speed for softer materials and a higher speed for harder materials like metal.

• Tip: Consult your tool's manual for recommended speed settings for different materials.

4. Use Light Pressure

• Description: Let the rotary file do the work. Applying too much pressure can cause the tool to wear out faster and may damage your workpiece.

• Tip: Maintain a steady hand and allow the tool's rotation to guide the cutting action.

5. Work in Smooth Motions

• Description: Move the tool in smooth, continuous motions for the best results and to avoid uneven surfaces.

• Tip: Practice on scrap material to get a feel for the movement and control required.

6. Clean the File Regularly

• Description: Maintain efficiency by cleaning the file regularly, especially when working with materials that tend to clog, like wood or aluminum.

• Tip: Use a wire brush to remove debris from the file's grooves.

Bonus Tips for Using Rotary Files

• Cooling Techniques

• Description: When working with metal, periodically dip the rotary file in water to prevent overheating.

• Tip: Keep a container of water nearby and take short breaks to cool both the tool and the workpiece.

• Avoiding Jamming

• Description: When working with softer materials, stop and clean the file regularly to prevent jamming and maintain a smooth cutting action.

• Tip: Applying a light coating of lubricant or wax can help reduce material buildup.

• Safety First

• Description: Always wear safety goggles and a dust mask when using rotary files, as small particles and debris can be generated during the process.

• Tip: Consider wearing ear protection and gloves for additional safety.

Frequently Asked Questions (FAQs)

Q1: Can rotary files be used on glass materials?

A: Yes, but you should use specific diamond-coated rotary files designed for glass to prevent cracking and achieve a smooth finish. Always use appropriate lubrication and operate at the correct speed to minimize damage.

Q2: How do I choose the right size of rotary file for my project?

A: The size depends on the scale and detail required for your project. Smaller files are suitable for intricate work, while larger files are better for removing substantial amounts of material. Refer to the manufacturer's guidelines for specific applications.

Q3: How often should I replace my rotary files?

A: Replace your rotary files when you notice signs of wear such as reduced cutting efficiency, visible dullness, or damage to the cutting edges. Regular maintenance and proper usage can extend the lifespan of your files.

Key Takeaway

Rotary files are versatile tools that can handle a wide range of tasks, from heavy-duty material removal to fine detailing. Whether you're a professional or a DIY enthusiast, mastering the use of rotary files can significantly improve your work quality and efficiency. Remember to:

• Choose the right file for your task.

• Maintain your tools through regular cleaning and proper usage.

• Prioritize safety by using appropriate protective gear and following recommended procedures.

By following these guidelines and utilizing the right techniques, you'll achieve precise and high-quality results in your projects.
